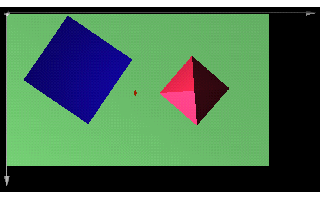

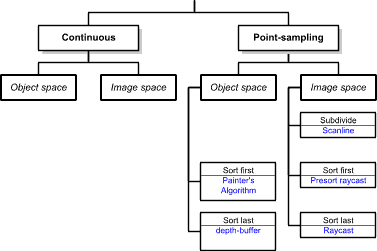

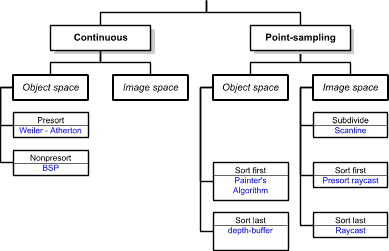

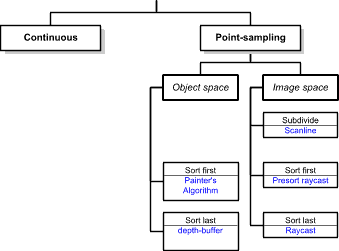

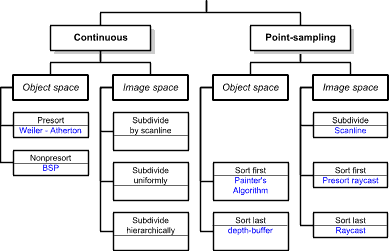

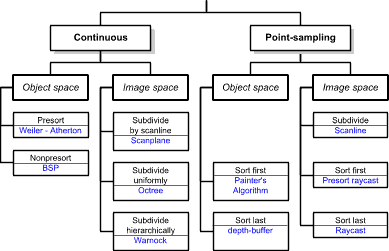

Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms

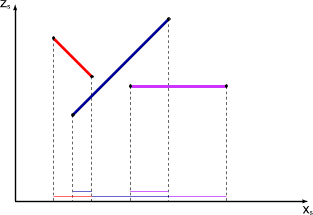

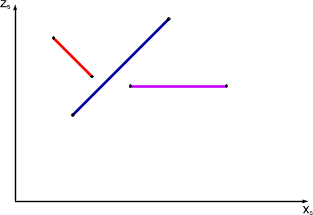

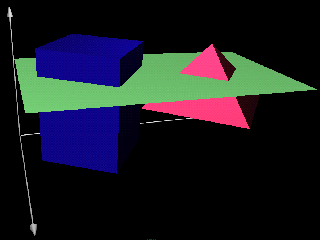

Scan Line Algorithm


Scan Line Algorithm



Scan Line Algorithm


Scan Line Algorithm


Scan Line Algorithm


Scan Line Algorithm



Scan Line Algorithm

(1) Sort polygons into sorted surface table (SST) based on Y

(2) Initialize y and active surface table (AST)

y = first nonempty scanline
AST = SST [ y ]

(3) Repeat until AST and SST are empty

identify spans for this scanline (sorted on x)
For each span
determine visible element (based on z)
fill pixel intensities with values from visible element
Update AST
remove exhausted polygons
y++
update x intercepts
resort AST on x
add entering polygons

(4) Display Intensity Array

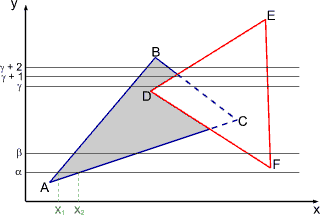

Scan Line Visibility Algorithm

Scanline [alpha]:

AST: ABC
spans:
0 -> x1
x1 -> x2
x2 -> max


Scan Line Visibility Algorithm

Scanline [alpha]:

AST: ABC
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> max

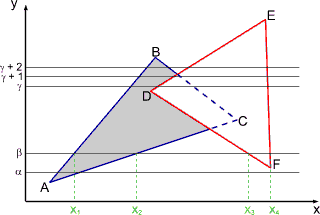

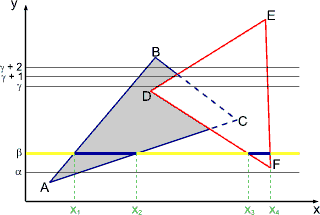

Scan Line Visibility Algorithm

Scanline [beta]:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2
x2 -> x3
x3 -> x4
x4 -> max


Scan Line Visibility Algorithm

Scanline [beta]:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> x3
x3 -> x4 : Fill DEF
x4 -> max

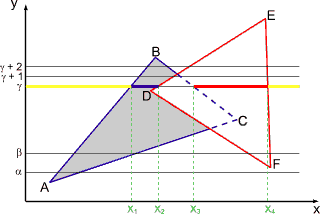

Scan Line Visibility Algorithm

Scanline [gamma]:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2
x2 -> x3
x3 -> x4
x4 -> max

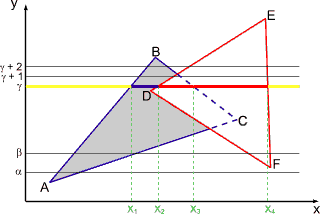

Scan Line Visibility Algorithm

Scanline [gamma]:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> x3
x3 -> x4 : Fill DEF
x4 -> max

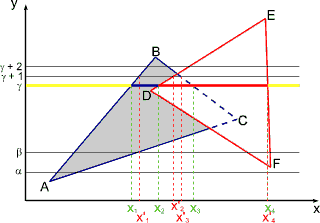

Scan Line Visibility Algorithm

Scanline [gamma]:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> x3 : Fill DEF
x3 -> x4 : Fill DEF
x4 -> max

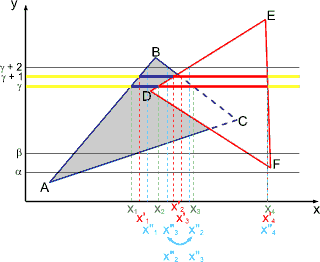

Scan Line Visibility Algorithm

Scanline [gamma]+1:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> x3 : Fill DEF
x3 -> x4 : Fill DEF
x4 -> max


Scan Line Visibility Algorithm

Scanline [gamma]+1:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> x3 : Fill DEF
x3 -> x4 : Fill DEF
x4 -> max


Scan Line Visibility Algorithm

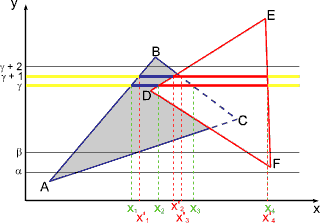

Scanline [gamma]+2:

AST: ABC DEF
spans:
0 -> x1
x1 -> x2 : Fill ABC
x2 -> x3
x3 -> x4 : Fill DEF
x4 -> max



Characteristics of Scan Line Algorithm

Good

little memory required
can generate scan lines as required
can anti-alias within scan line
fast
simplification of problem simplifies geometry
can exploit coherence

Bad

fairly complicated to implement
difficult to anti-alias between scanlines



Ray-Tracing Algorithm

Given
    List of polygons { P1, P2, ..., Pn }
    An array of intensity [ x, y ]

{
    For each pixel (x, y) {
        form a ray R in object space through the
	    camera position C and the pixel (x, y)

        Intensity [ x, y ] = trace ( R )
    }

    Display array Intensity
}

Ray-Tracing Algorithm

Given
    List of polygons { P1, P2, ..., Pn }
    An array of intensity [ x, y ]

{
    For each pixel (x, y) {
        form a ray R in object space through the
	    camera position C and the pixel (x, y)

        Intensity [ x, y ] = trace ( R )
    }

    Display array Intensity
}

intensity Function  trace ( Ray )
{
    For each polygon P in the scene {
        calculate the intersection of P and the ray R
    }

    If ( The ray R hits no polygon ) {
        return ( background intensity )
    }
    else {
        find the polygon P with the closest intersection
	calculate intensity I at intersection point
	return ( I )
    }
}


Ray-Tracing Algorithm

Given
    List of polygons { P1, P2, ..., Pn }
    An array of intensity [ x, y ]

{
    For each pixel (x, y) {
        form a ray R in object space through the
	    camera position C and the pixel (x, y)

        Intensity [ x, y ] = trace ( R )
    }

    Display array Intensity
}

intensity Function  trace ( Ray )
{
    For each polygon P in the scene {
        calculate the intersection of P and the ray R
    }

    If ( The ray R hits no polygon ) {
        return ( background intensity )
    }
    else {
        find the polygon P with the closest intersection
	calculate intensity I at intersection point
	return ( Illumination model ( I,
             trace (reflect ), trace ( refract ) ) )
    }
}


Ray-Tracing Algorithm

Presorted

Given
    List of polygons { P1, P2, ..., Pn }
    An array of intensity [ x, y ]

{
    Sort polygon list by minimum Z
    For each pixel (x, y) {
        form a ray R in object space through the
	    camera position C and the pixel (x, y)

        Intensity [ x, y ] = trace ( R )
    }

    Display array Intensity
}

intensity Function  trace ( Ray )
{
    While no intersection and polygons remaining {
        calculate the intersection of P and the ray R
    }

    If ( The ray R hits no polygon ) {
        return ( background intensity )
    }
    else {
	calculate intensity I at intersection point
	return ( Illumination model ( I,
             trace (reflect ), trace ( refract ) ) )
    }
}


Ray-Tracing Algorithm

Presorted

Given
    List of polygons { P1, P2, ..., Pn }
    An array of intensity [ x, y ]

{
    Sort polygon list by minimum Z
    For each pixel (x, y) {
        form a ray R in object space through the
	    camera position C and the pixel (x, y)

        Intensity [ x, y ] = trace ( R )
    }

    Display array Intensity
}

intensity Function  trace ( Ray )
{
    While no intersection and polygons remaining {
        calculate the intersection of P and the ray R
    }

    Check for intersections with overlapping polygons

    If ( The ray R hits no polygon ) {
        return ( background intensity )
    }
    else {
	calculate intensity I at intersection point
	return ( Illumination model ( I,
             trace (reflect ), trace ( refract ) ) )
    }
}


Ray-Tracing Algorithm

Presorted

Given
    List of polygons { P1, P2, ..., Pn }
    An array of intensity [ x, y ]

{
    Sort polygon list by minimum Z
    For each pixel (x, y) {
        form a ray R in object space through the
	    camera position C and the pixel (x, y)

        Intensity [ x, y ] = trace ( R )
    }

    Display array Intensity
}

intensity Function  trace ( Ray )
{
    While no intersection and polygons remaining {
        calculate the intersection of P and the ray R
    }

    Check for intersections with overlapping polygons

    If ( The ray R hits no polygon ) {
        return ( background intensity )
    }
    else {
	calculate intensity I at intersection point
	return ( Illumination model ( I,
	     trace (reflect ), trace ( refract ) ) )
	        z-sort no longer useful
    }
}



Calculating Intersections

Define ray parametrically:

x = x0 + t(x1 - x0)
y = y0 + t(y1 - y0)
z = z0 + t(z1 - z0)


Calculating Intersections

Define ray parametrically:

x = x0 + t(x1 - x0)
y = y0 + t(y1 - y0)
z = z0 + t(z1 - z0)

If (x0, y0, z0) is center of projection and (x1, y1, z1) is center of pixel, then

0 <= t <= 1 : points between those locations
t < 0 : points behind viewer
t > 1 : points beyond view window


Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z


Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0


Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0
t(A . [delta]x + B . [delta]y + C . [delta]z) + (Ax0 + By0 + Cz0 + D) = 0


Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0
t(A . [delta]x + B . [delta]y + C . [delta]z) + (Ax0 + By0 + Cz0 + D) = 0
t = - (Ax0 + By0 + Cz0 + D) / (A . [delta]x + B . [delta]y + C . [delta]z)


Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0
t(A . [delta]x + B . [delta]y + C . [delta]z) + (Ax0 + By0 + Cz0 + D) = 0
t = - (Ax0 + By0 + Cz0 + D) / (A . [delta]x + B . [delta]y + C . [delta]z)

(2) Does ray/plane intersection point lie in polygon?


Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0
t(A . [delta]x + B . [delta]y + C . [delta]z) + (Ax0 + By0 + Cz0 + D) = 0
t = - (Ax0 + By0 + Cz0 + D) / (A . [delta]x + B . [delta]y + C . [delta]z)

(2) Does ray/plane intersection point lie in polygon?

  • Substitute into line equations for polygon edges
    does point lie inside all edges?

Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0
t(A . [delta]x + B . [delta]y + C . [delta]z) + (Ax0 + By0 + Cz0 + D) = 0
t = - (Ax0 + By0 + Cz0 + D) / (A . [delta]x + B . [delta]y + C . [delta]z)

(2) Does ray/plane intersection point lie in polygon?

  • Substitute into line equations for polygon edges
    does point lie inside all edges? <= convex!
  • Count edge crossings of ray from point to infinity
    odd : inside
    even : outside

Calculating Intersections : Polygons

Define ray parametrically:

x = x0 + t . [delta]x
y = y0 + t . [delta]y
z = z0 + t . [delta]z

(1) What is intersection of ray and plane containing polygon?

Plane : Ax + By + Cz + D = 0

Substituting for x, y, z:

A(x0 + t . [delta]x) + B(y0 + t . [delta]y) + C(z0 + t . [delta]z) + D = 0
t(A . [delta]x + B . [delta]y + C . [delta]z) + (Ax0 + By0 + Cz0 + D) = 0
t = - (Ax0 + By0 + Cz0 + D) / (A . [delta]x + B . [delta]y + C . [delta]z)

(2) Does ray/plane intersection point lie in polygon?

  • Substitute into line equations for polygon edges
    does point lie inside all edges? <= convex!
  • Count edge crossings of ray from point to infinity
    odd : inside
    even : outside
  • Winding number testing

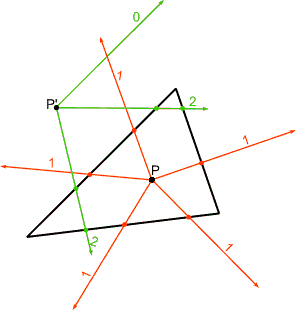

Determining if Point is in Polygon


Determining if Point is in Polygon


Determining if Point is in Polygon

  • 1 corssing => inside
  • 0,2 corssing => outside

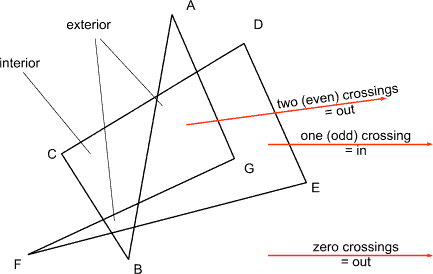

Determining if Point is in Polygon


Determining if Point is in Polygon

  • odd number of corssings => inside

Determining if Point is in Polygon

  • odd number of corssings => inside
  • even number of corssings => outside

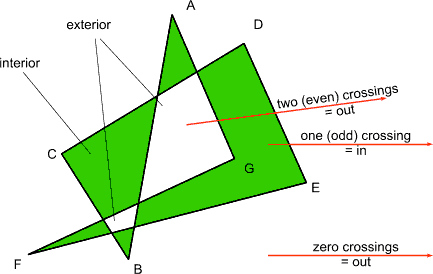

Determining if Point is in Polygon


Determining if Point is in Polygon



Determining if Point is in Polygon

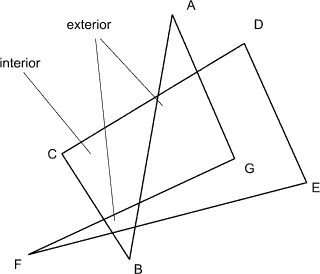

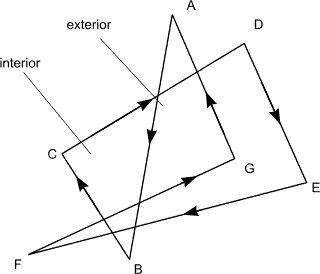

Self intersecting polygon

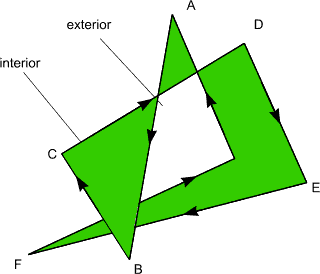

Odd even rule

Count each crossing as one


Determining if Point is in Polygon

Self intersecting polygon

Odd even rule

Count each crossing as one


Determining if Point is in Polygon

Self intersecting polygon

Odd even rule

Count each crossing as one


Determining if Point is in Polygon

Self intersecting polygon

Nonzero winding number rule


Determining if Point is in Polygon

Self intersecting polygon

Nonzero winding number rule

Count number of times border wraps point

+ clockwise
- counterclockwise

NC = 0 : outside
NC != 0 : inside



Ray-Tracing: Characteristics

Good:

  • Simple to implement
  • Minimal memory required
  • Easy to extend
    Reflaction
    Refraction
    Other geometric primitives

Ray-Tracing: Characteristics

Good:

  • Simple to implement
  • Minimal memory required
  • Easy to extend
    Reflaction
    Refraction
    Other geometric primitives

Bad

  • Aliasing
  • Computationally intensive
    Intersections expensive (75 - 95% of rendering time)
    Lots of rays


Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms


Taxonomy of Visibility Algorithms



BSP Tree Method : Building the Tree

BSPTree MakeBSP ( Polygon list )
{
   if ( list is empty )
      return null

   else {
      root = some polygon ; remove it from the list
      backlist = frontlist = null

      for ( each remaining polygon in the list ) {
         if ( p in front of root ) {
	    add to list ( p, front list )
	 }
	 else if ( p in back of root ) {
	    add to list ( p, back list )
         }
	 else {
	    split polygon ( p, root, frontpart, backpart )
	    add to list ( frontpart, front list )
	    add to list ( backpart, back list )
	 }
      }
      return ( combine tree ( MakeBSP ( front list ), root,
                              MakeBSP ( back list ) ) )
   }
}

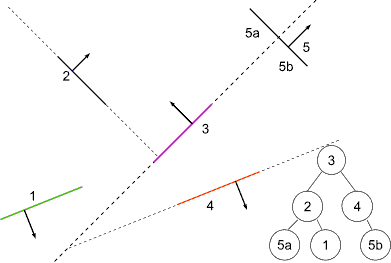

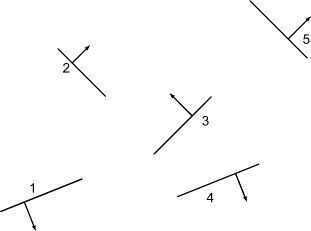

Building a BSP Tree


Building a BSP Tree

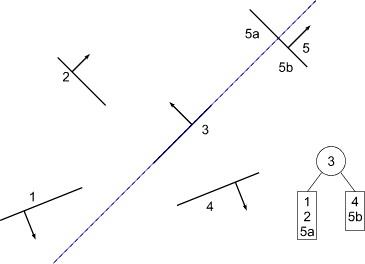

Use 3 as root, split on its plane.

Polygon 5 split into 5a and 5b


Building a BSP Tree

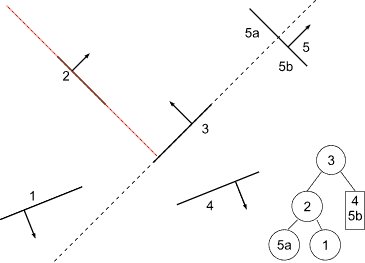

Split left subtree at 2


Building a BSP Tree

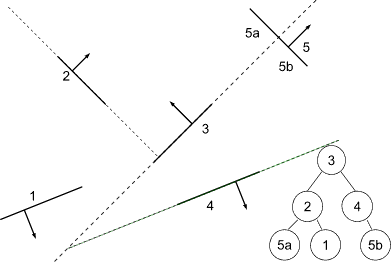

Split right subtree at 4


Building a BSP Tree

Tree if splits are made at 5, 4, 3, 1



BSP Tree Method : Displaying the Tree

DisplayBSP ( tree )
{
   if ( tree not empty ) {
      if ( viewer in front of root ) {
         DisplayBSP ( tree -> back )
	 DisplayPolygon ( tree -> root )
	 DisplayBSP ( tree -> front )
      }
      else {
         DisplayBSP ( tree -> front )
	 DisplayPolygon ( tree -> root )
	 DisplayBSP ( tree -> back )
      }
   }
}



BSP Tree Display


BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first

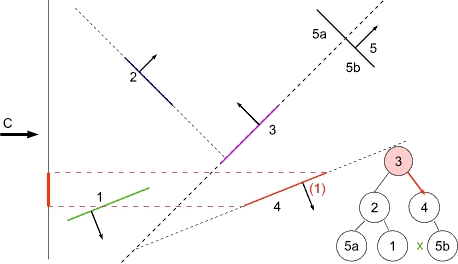

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

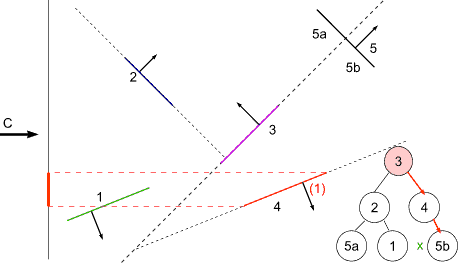

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front (none)
                                 display self
				 display back (none)

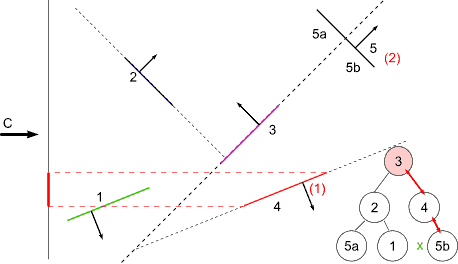

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front
                                 display self
				 display back (none)
		display self

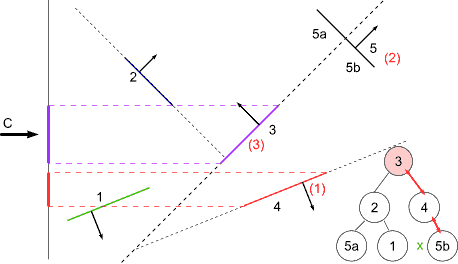

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front (none)
                                 display self
				 display back (none)
		display self
		display front

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front (none)
                                 display self
				 display back (none)
		display self
		display front
      at 2 : viewpoint on back -> display front first

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front (none)
                                 display self
				 display back (none)
		display self
		display front
      at 2 : viewpoint on back -> display front first
         at 5a : viewpoint on back -> display front (none)
                                      display self
				      display back (none)

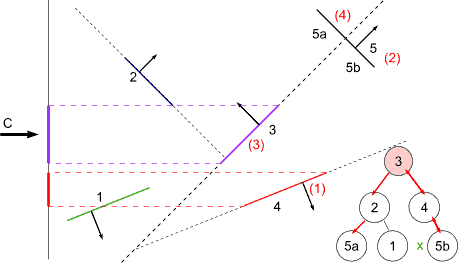

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front (none)
                                 display self
				 display back (none)
		display self
		display front
      at 2 : viewpoint on back -> display front first
         at 5a : viewpoint on back -> display front (none)
                                      display self
				      display back (none)
                                 display self

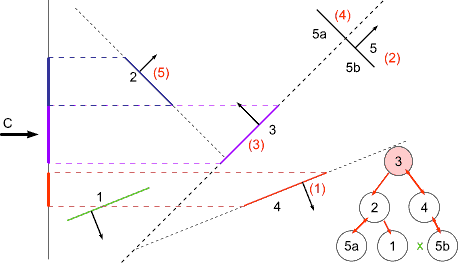

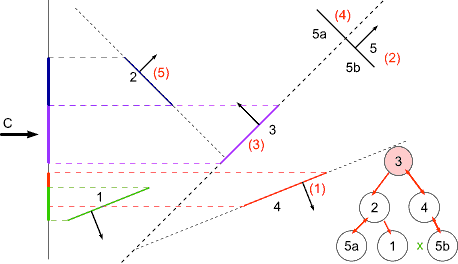

BSP Tree Display

For view point at C
   at 3 : viewpoint on front -> display back first
      at 4 : viewpoint on back -> display front first (none)
                                 display self
				 display back

      at 5b : viewpoint on back -> display front (none)
                                 display self
				 display back (none)
		display self
		display front
      at 2 : viewpoint on back -> display front first
         at 5a : viewpoint on back -> display front (none)
                                      display self
				      display back (none)
                                 display self
         at 1 : viewpoint on back ->  display front (none)
                                      display self
				      display back (none)



[prev][next]
Made by dynaPage 0.2
