Introduction

1. Introduction#

The SQL programming language has rich syntax with many variants and options. Moreover, database system S/W vendors often provide their own SQL dialects/extensions.

This review provides just a glimse of the many SQL statements.

We examine sample SQL statements that are useful and sufficient for satisfying most data management requirements frequently encountered in practice.

For a comprehensive review of SQL (including deviations from the SQL standard), the interested reader is referred to the SQL manuals of the chosen database server.

For concreteness, we use the university database in the book Database Systems Concepts (6th ed) by Silberschatz et al.

The SQL standard has gone through many revisions (from its 1987 version to the latest in 2019).

This review focuses on core language features of the SQL:1999 ANSI standard

Hereafter, following standard conventions, the terms relation, tuple, and attribute are interchangeable with the terms table, row, and column.

SQL (keywords and names) is case insensitive.

2. Initialization & Setup#

This notebook uses the sql line and cell magics. Refer to SQL_magic_demo.ipynb for a quick tutorial on using the %sql and %%sql magics.

In addition, it contains SQL statements for the MySQL and/or SQLite database systems.

2.1. Setup prerequisite S/W packages#

# install/upgrade python packages

#!pip install --upgrade pysqlite
#!pip install mysql-connector-python

# one of the following two
#!pip install ipython-sql
#!pip install jupysql duckdb-engine

# initialize notebook and load the sql magics
%matplotlib inline
# %load_ext sql
%load_ext isql

2.2. imports#

from IPython import get_ipython
# from IPython.display import display

import os
import sqlite3

import pandas as pd
import numpy as np

import re
import urllib.request
import getpass

import logging

# set pandas display options
pd.set_option('display.width', 120, 'display.max_columns', None,
              'display.expand_frame_repr', False, 'max_colwidth', 120)

# setup isql logger's logging level
# %isql --loglevel {logging.INFO}

2.3. Support functions#

We define python functions for easily managing SqlMagic options, and for getting metadata information about database objects such as tables and indexes, which are dependent on the database server used in a connection.

MySQL has special INFORMATION_SCHEMA tables that store metadata information. These tables can be accessed with SQL queries or special SQL commands which MySQL supports.

SHOW TABLES;
SHOW COLUMNS FROM <table_name>;
SHOW INDEX FROM <table_name>;

SQLite also has statements to retrieve metadata information about database objects

PRAGMA TABLE_INFO(<table_name>);
PRAGMA INDEX_LIST(<table_name>);
PRAGMA FOREIGN_KEY_LIST(<table_name>);
PRAGMA INDEX_INFO(<index_name>);

from utils import check_sqlite_version
from utils import sql_magic_toggle, current_dialect
from utils import metainfo_sqlite, metainfo_mysql, metainfo
from utils import metainfo2
from utils import cross_tab_emulation
from cross_tab_df import to_crosstab, build_example_xtab_query

from utils import find_extra_tables, cleanup_tables

3. Connect to a database#

3.1. establish connections#

# for SQLite databases

# Set the pathname for the local file that stores the SQLite database
db_filename = 'test.sqlite'

# download remote database from remote_db_url (if not None) to local db_filename
remote_db_url = "https://www.csee.umbc.edu/~kalpakis/courses/common/university-db.sqlite"
#remote_db_url = None
if remote_db_url is not None:
  urllib.request.urlretrieve(remote_db_url, filename=db_filename)
  print(f'downloaded {remote_db_url} \n\tto local file {db_filename}')

# set the database connection URL string
sqlite_url = f'sqlite:///{db_filename}'

downloaded https://www.csee.umbc.edu/~kalpakis/courses/common/university-db.sqlite
	to local file test.sqlite

# for MySQL databases
#
# Assumes that we have installed the mysql-connector-python package
#!pip install --upgrade mysql-connector-python
#
# for user 'scott' with password 'tiger' connecting to database 'foo'
# running on database server at IP address 'localhost',
# the connection URL string will look like

# connection_url = 'mysql+pymysql://scott:tiger@localhost/foo'
# connection_url = 'mysql+mysqlconnector://scott:tiger@localhost/foo'

# get DB username and password from the standard input
mysql_url = None

#set the default database tableschema
db_name = db_schema = 'university'

if True:
    db_user = getpass.getpass('Enter username') if db_user is None else db_user
    db_password = getpass.getpass('Enter password') if db_password is None else db_password
    mysql_url = f'mysql+mysqlconnector://{db_user}:{db_password}@localhost/{db_name}'
else:
    mysql_url = sqlite_url

# Open a connection to the database
%isql --alias C1 {sqlite_url}
%isql --alias C2 {mysql_url}
%isql C1

Connecting and switching to connection 'C1'

curr_conn is C1

Done.

Connecting and switching to connection 'C2'

curr_conn is C2

Done.

Switching to connection 'C1'

curr_conn is C1

Done.

# set certain SqlMagic config params to control verbosity of sql magics
sql_magic_toggle(False, feedback=True)
pass

3.2. set current connection#

# available connections
%isql --connections
# %isql -l

Done.

	current	url	alias
0	*	sqlite:///test.sqlite	C1
1		mysql+mysqlconnector://root:***@localhost/university	C2
2		sqlite:///	mem

# C1: sqlite C2:mysql
%isql C2

Switching to connection 'C2'

Done.

4. SQL in 1 minute#

Suppose we wish to use a relational database system to

setup a table to store the name, email, zoom personal roomid, and birth-date of our friends
store information for some specific friends
review the stored records sorted by name
discard the table (since we changed our mind)

A simple SQL program performing these four tasks consists of the SQL statements given in the following four code cells.

%%isql
CREATE TABLE friends (
    name VARCHAR(20) NOT NULL,
    email VARCHAR(64) PRIMARY KEY,
    dob DATE,
    zoom_id INT UNIQUE);

Done.

%%isql
INSERT INTO friends VALUES('Bob', 'bob@there.earth', NULL, 5678);
INSERT INTO friends VALUES('Eve', 'eve@here.there', date('2020-05-31'), 9999);
INSERT INTO friends VALUES('Alice', 'alice@here.there', '1990-12-31', 1234);

1 rows affected.

Done.

%%isql
SELECT * FROM friends ORDER by name;

3 rows affected.

Done.

	name	email	dob	zoom_id
0	Alice	alice@here.there	1990-12-31	1234
1	Bob	bob@there.earth	None	5678
2	Eve	eve@here.there	2020-05-31	9999

%%isql
DROP TABLE friends;

Done.

5. Concepts and terms I#

5.1. Users, agents, clients and servers#

A processor refers to a computer program that is executable in a computer system.

A database server is a processor that executes SQL statements and manages SQL data. The execution of a single SQL statement by the server often leads to a sequence of multiple operations on the SQL data.

An agent is that which causes the execution of SQL statements by the database server. An agent acts on behalf of user and uses a client to interact with the server.

A client is a processor that can communicate with a database server to request the execution of and retrieve the response to SQL statements. A client establishes a connection to a server, maintains information to manage its interaction with the server, interacts with the server, and finally terminates its connection to the server.

A session spans the execution of SQL statements during a particular client-server connection.

5.2. Tables#

A table has an ordered collection of one or more columns and an unordered collection of zero or more rows. Each column has a name, a data type and domain, a default, and a nullability characteristic. Each row has, for each column, exactly one value in the domain of the data type of that column.

A domain is a set of persmissible values and is either finite or infinite. A domain is either explicitly defined or is a domain implied by a built-in data type of the database system.

A query is a table expression that references zero or more tables, uses table operators, and returns a table. Table expressions are evaluated by the server.

A table is either one of the following types

a base table is either a persistent base table or a temporary table
a persistent base table is a named table defined by a CREATE TABLE statement which is stored in the database
a temporary table is a named table with limited scope and which is defined by a CREATE TEMPORARY TABLE statement
- temporary tables are effectively materialized only when referenced in a session
a derived table is a table derived directly or indirectly from one or more other tables by evaluating a table expression
- a named derived table is called a viewed table or simply view
a transient table is a named derived table that may come into existence implicitly during the evaluation of a statement
a transition table is a collection of rows being inserted, updated, or deleted when executing a SQL statement

A column of a base table is either a base column or a generated column. A base column is one for which each tuple of the table has a stored value. A generated column is one whose values are determined by evaluating an expression which may refer to other columns of the table to which it belongs but no other data.

5.3. Integrity constraints#

Integrity constraints define the valid states of the database data by constraining the values in the base tables.

An integrity constraint is either one of the following

a domain constraint which is associated with a domain and defines the valid values for all columns based on that domain or values casted to that domain
an assertion is a named constraint that may apply to the content of individual rows of a table, to the entire contents of a table, or to a state required to exist among several base tables.
a table constraint

A table constraint is associated with a single base table and is either one of the following

a unique constraint specifies one or more columns of the table as unique columns, and it is is satisfied if and only if no two of its rows have the same non-NULL values in the unique columns.
a primary key constraint specifies one or more columns as PRIMARY KEY columns, and is a unique constraint with the additional requirement that every row has non-NULL values on the PRIMARY KEY columns
a referential constraint, also called foreign-key (reference) constraint, specifies the requirement of the existence of a row in another table (called parent table) for each row of the current table (called child table) that agree on certain child and parent table columns
a check constraint is a boolean predicate that each row of a table is required to satisfy

5.3.1. Checking of constraints#

Every constraint has a mode

immediate: the constraint is checked at the end of each SQL statement
deferred: the constraint is checked when its mode changes to immediate.

When a constraint is checked, if it is not satisfied the server raises an exception to the client and the effects of a client’s current statement or transaction on the database are discarded by the server.

Every constraint is either deferrable or non-deferrable (and its mode is immediate). A client may toggle the mode of a deferrable constraint with a SQL statement. A SQL transaction may change the mode of deferrable constraints

to deferred upon the start of the transaction
to immediate at any time prior to the end of the transaction (explicitly or implicitly due to a COMMIT statement); if an exception is raised, the transaction is terminated by an implicit ROLLBACK statement.

SQL transactions are discussed further below.

6. Creating, altering, and dropping tables#

6.1. Dropping a table#

To discard an existing table, its associated data, and any dependent database objects (eg integrity constraints, indexes, triggers, etc), we use the statement

DROP TABLE [IF EXISTS] <table-name>;

6.2. Domain types#

Built-in domain and data types that can be used to specify attributes of tables are

CHAR(n)
VARCHAR(n)
INT
SMALLINT
NUMERIC(p,d)
REAL
DOUBLE
FLOAT(n)
DATE
TIME
TIMESTAMP
BLOB
TEXT
ENUM

Database systems often allow user-defined domain types.

6.3. Creating a table#

The basic syntax of the SQL statement for creating a table is

CREATE TABLE [IF NOT EXISTS] <table-name>(
   <attribute-specifications>
   [, <table-constraints>]);

where an attribute specification is

<attribute-name> <domain-type> [NOT NULL] [DEFAULT <value>]
<attribute-name> <domain-type> AS (<expr>)[VIRTUAL|STORED]

and a table constraint is one of

PRIMARY KEY(<attributes>)
UNIQUE(<attributes>)
CHECK(<boolean-predicate>)
FOREIGN KEY <attributes> REFERENCES <parent-table>[(<parent-primary-key-attributes>)]

The database server builds and maintains appropriate indexes to support each one of the primary key and unique constraints.

a database index is a special data structure for efficiently finding tuples in a table based on some search condition

6.4. Foreign key reference constraints#

A foreign key reference constraint from one table into another table on some attributes (referred to as the child table, parent table, child key, and parent key attributes respectively) is specified in the child table using

<foreing_key_constraint> ::
    FOREIGN KEY <child_key> REFERENCES <parent_table>[(<parent_key>)] [ON DELETE <action>] [ON UPDATE <action>]
<action> :: RESTRICT|CASCADE|SET NULL|SET DEFAULT

expresses the requirement that

for each child tuple there exists a unique parent tuple whose primary key attributes agree in value with the child tuple on the child key attributes.

Effectively,

the child key value of a child tuple is a “pointer/reference/address” into a unique parent tuple with matching parent key value
a parent tuple may have multiple child tuples pointing to it; we say that a parent tuple owns its children tuples

Often times, a foreign key reference constraint also specifies what action the database server is to take on the children tuples owned by a parent tuple when the parent tuple is deleted or its parent key value changes

reject the change to the parent key value of the parent tuple (aka RESTRICT), the default action
cascade the change to the child key attributes of its children tuples
set the child key attributes of its children tuples to NULL or their default value as specified in the child table

6.5. Example: creating a table with foreign key reference constraints#

%%isql --dialect sqlite
-- # Enable enforcement of foreign key constraints

PRAGMA foreign_keys = ON;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql --dialect mysql
-- # Enable/Disable enforcement of foreign key constraints

SET foreign_key_checks = ON;
SHOW VARIABLES LIKE 'foreign_key_checks';

1 rows affected.

Done.

%%isql
-- # Creating a new instructor table

DROP TABLE IF EXISTS _instructor;

CREATE TABLE _instructor(
   id VARCHAR(5),
   name VARCHAR(20) NOT NULL,
   dept_name VARCHAR(20) NOT NULL DEFAULT 'College',
   salary NUMERIC(8,2) CHECK(salary > 0),
   PRIMARY KEY(id),
   UNIQUE(name, dept_name),
   FOREIGN KEY(dept_name) REFERENCES department(dept_name)
      ON DELETE SET DEFAULT
      ON UPDATE CASCADE
);

-- insert some tuples
insert into _instructor select * from instructor;
select * from _instructor limit 5;

12 rows affected.

5 rows affected.

Done.

	id	name	dept_name	salary
0	10101	Srinivasan	Comp. Sci.	65000.00
1	12121	Wu	Finance	90000.00
2	15151	Mozart	Music	40000.00
3	22222	Einstein	Physics	95000.00
4	32343	El Said	History	60000.00

# metainfo(tableschema=tableschema, tablename='_instructor', limit=None)
metainfo2('_instructor')

Done.

Metadata for table '_instructor':
Columns

	name	type	nullable	default	autoincrement	primary_key	unique	index	computed	comment
0	id	VARCHAR(5)	False	None	auto	True	None	None	None	None
1	name	VARCHAR(20)	False	None	auto	False	None	None	None	None
2	dept_name	VARCHAR(20)	False	None	auto	False	None	None	None	None
3	salary	DECIMAL(8, 2)	True	None	auto	False	None	None	None	None

Indexes

	name	column_names	unique	type
0	dept_name	[dept_name]	False	NaN
1	name	[name, dept_name]	True	UNIQUE

primary key constraints:

	constrained_columns	name
0	[id]	None

unique constraints:

	name	column_names	duplicates_index
0	name	[name, dept_name]	name

foreign key reference constraints:

	name	constrained_columns	referred_schema	referred_table	referred_columns	options
0	_instructor_ibfk_1	[dept_name]	university	department	[dept_name]	{'onupdate': 'CASCADE', 'ondelete': 'SET DEFAULT'}

check constraints:

	name	sqltext
0	_instructor_chk_1	(`salary` > 0)

6.6. Modifying the structure of an existing table#

Database systems offer many variants of SQL statements for modifying the structure of an existing table, e.g. for adding/dropping attributes and constraints.

ALTER TABLE <table-name> ADD <attribute-specification>;
ALTER TABLE <table-name> DROP <attribute-name>;

%%isql
-- # Extend the instructor tuples with a zipcode attribute with default value 21250.

ALTER TABLE _instructor ADD zipcode CHAR(5) DEFAULT '21250';
SELECT * FROM _instructor;

12 rows affected.

Done.

	id	name	dept_name	salary	zipcode
0	10101	Srinivasan	Comp. Sci.	65000.00	21250
1	12121	Wu	Finance	90000.00	21250
2	15151	Mozart	Music	40000.00	21250
3	22222	Einstein	Physics	95000.00	21250
4	32343	El Said	History	60000.00	21250
5	33456	Gold	Physics	87000.00	21250
6	45565	Katz	Comp. Sci.	75000.00	21250
7	58583	Califieri	History	62000.00	21250
8	76543	Singh	Finance	80000.00	21250
9	76766	Crick	Biology	72000.00	21250
10	83821	Brandt	Comp. Sci.	92000.00	21250
11	98345	Kim	Elec. Eng.	80000.00	21250

# metainfo(tableschema=tableschema, tablename='_instructor', limit=1)
metainfo2('_instructor')

Done.

Metadata for table '_instructor':
Columns

	name	type	nullable	default	autoincrement	primary_key	unique	index	computed	comment
0	id	VARCHAR(5)	False	None	auto	True	None	None	None	None
1	name	VARCHAR(20)	False	None	auto	False	None	None	None	None
2	dept_name	VARCHAR(20)	False	None	auto	False	None	None	None	None
3	salary	DECIMAL(8, 2)	True	None	auto	False	None	None	None	None
4	zipcode	CHAR(5)	True	None	auto	False	None	None	None	None

Indexes

	name	column_names	unique	type
0	dept_name	[dept_name]	False	NaN
1	name	[name, dept_name]	True	UNIQUE

primary key constraints:

	constrained_columns	name
0	[id]	None

unique constraints:

	name	column_names	duplicates_index
0	name	[name, dept_name]	name

foreign key reference constraints:

	name	constrained_columns	referred_schema	referred_table	referred_columns	options
0	_instructor_ibfk_1	[dept_name]	university	department	[dept_name]	{'onupdate': 'CASCADE', 'ondelete': 'SET DEFAULT'}

check constraints:

	name	sqltext
0	_instructor_chk_1	(`salary` > 0)

%%isql --dialect mysql
-- # Discard a column from a table

ALTER TABLE _instructor DROP zipcode;
SELECT * FROM _instructor LIMIT 3;

3 rows affected.

Done.

	id	name	dept_name	salary
0	10101	Srinivasan	Comp. Sci.	65000.00
1	12121	Wu	Finance	90000.00
2	15151	Mozart	Music	40000.00

7. Concepts and terms II#

7.1. Cursor#

A cursor is an iterator mechanism by which a client may act on the rows of a (result) table, one row at a time. A cursor can be in an open or close state. An open cursor specifies an associated table, an ordering of the rows for that table, and a row position relative to that ordering

the position of an open cursor is either before a certain row, on a certain row, or after the last row
if a cursor is on a row, then that row is the current row of the cursor
an open cursor is initially before the first row of the table
a cursor may be before the first row or after the last row even if the table is empty

A cursor is either

updatable (if FOR UPDATE OF is specified when the cursor defined), which allows the client to update the current row of the cursor
or not updatable

7.2. Query evaluation#

To evaluate a query (table expression), the database server carries a number of steps for each query:

checks that the query is syntactically valid SQL
checks that the client’s agent has sufficient privileges to access the referenced database data or metadata
checks that all referenced database objects exist and builds a parse tree using a SQL parser
transforms the parse tree into an expression tree, which is a rooted tree that has table variables as leaf nodes and various simple table (relational algebra) operators as internal nodes, with the root node representing the result of the query
transforms the expression tree into an optimized query evaluation plan, which is a logically-equivalent rooted tree whose nodes are calls to concrete executable functions with specific parameter values
the query plan is then evaluated by the query evaluation module of the server and the result table is made available to the client

The database server takes similar steps for executing all SQL statements.

There is an enormous number of ways to construct evaluation plans.

Since clients often use (implicit or explicit) cursors to access the result table of a query

modern servers build evaluation plans whose methods are iterator data structures, i.e. have open(), next(), has_more(), close() calls
the client’s cursor is identified with the root iterator of the evaluation plan
the query evaluation module is then evaluated in a pull-mode (where a open/next/close call at the root causes a cascade of such calls in the children) or in a push-mode (where a newly available row at a leaf operand table causes a a cascade of next calls at its parent node).

We will often make use of simplistic query evaluation plans (i.e. tree of iterators) to analyze the operational semantics of SQL statements.

8. Structure of common SQL query statements#

SQL is a declarative programming language for database processors.

A SQL statement specifies a desired outcome (output) that is to be derived from the database.

When developing a SQL query, we sometimes express the desired outcome (result table) as a sequence of simple transformations of some input tables.

The database server is expected to achieve the desired outcome in an efficient manner, and hence it is free to perform whatever operations needed that lead to the same desired outcome.

The structure of a common SQL query statement is

SELECT <attribute_references>
[FROM <table_references>]
[WHERE <tuple_selection_predicate> ]
[GROUP BY <group_partition_attributes>
  [HAVING <group_selection_predicate>] ]
[ORDER BY <attributes> [ASC|DESC] ]
[LIMIT <num> [OFFSET <num>]] ;

where the SELECT clause is required, while all the other clauses are optional.

We will see details of the syntax and semantics for these clauses below.

The FROM, WHERE, GROUP BY, and HAVING clauses constitute the core table expression segment of a SQL query statement, while the SELECT, ORDER BY, and LIMIT clauses often constitute the cursor segment of a SQL query statement.

The FROM clause contains references (names) to the query’s input tables. Each table reference provides an (implicit) iterator variable that ranges over the table’s rows.

The SELECT clause contains references to columns of the result table.

For each SQL query statement submitted to the server by a client, the server evaluates the query and makes its result table available to the client. By default, the server provides no guaranteed order for the tuples in the result table.

Clients usually act on the result tuples one at a time by (implicitly or explicitly) opening a cursor. Consequently, for performance reasons, database servers may partially materialize the result table (e.g. produce the rows of a result table one at a time, and store only the current row of the client’s open cursor).

9. Querying a single table#

We begin by considering queries on a single input table. These queries will have a FROM clause with a single reference to an input table.

Each tuple from the input table will be contributing at most one tuple towards the result table.

9.1. Projecting attributes to the result table#

To express a desire for a result table that has only some of the columns of the input table, we include in the SELECT clause references to all those columns that are to be retained

[<table_reference>.]<attribute_name>

The table reference is required in an attribute reference when there are homonymous input attributes (different attributes with the same name).

%%isql
-- # Find the names and department names of the instructors

SELECT name, dept_name
FROM instructor;

12 rows affected.

Done.

	name	dept_name
0	Srinivasan	Comp. Sci.
1	Wu	Finance
2	Mozart	Music
3	Einstein	Physics
4	El Said	History
5	Gold	Physics
6	Katz	Comp. Sci.
7	Califieri	History
8	Singh	Finance
9	Crick	Biology
10	Brandt	Comp. Sci.
11	Kim	Elec. Eng.

%%isql
-- # Find the department names of the instructors

SELECT dept_name FROM instructor;

12 rows affected.

Done.

	dept_name
0	Biology
1	Comp. Sci.
2	Comp. Sci.
3	Comp. Sci.
4	Elec. Eng.
5	Finance
6	Finance
7	History
8	History
9	Music
10	Physics
11	Physics

9.2. Supressing duplicate tuples from the result table#

By default, duplicate tuples are not discarded from the result of a query (since doing so often entails a performance loss in processing the query).

Use the DISTINCT operator to supress duplicate tuples from the result table of a query.

%%isql
-- # Find the unique departments of the instructors

SELECT DISTINCT dept_name
FROM instructor;

7 rows affected.

Done.

	dept_name
0	Biology
1	Comp. Sci.
2	Elec. Eng.
3	Finance
4	History
5	Music
6	Physics

%%isql
-- # Retrieve unique dept_name, salary tuples of the instructors

SELECT DISTINCT dept_name, salary
FROM instructor;

12 rows affected.

Done.

	dept_name	salary
0	Comp. Sci.	65000.00
1	Finance	90000.00
2	Music	40000.00
3	Physics	95000.00
4	History	60000.00
5	Physics	87000.00
6	Comp. Sci.	75000.00
7	History	62000.00
8	Finance	80000.00
9	Biology	72000.00
10	Comp. Sci.	92000.00
11	Elec. Eng.	80000.00

9.3. The `*` operator#

The * operator expands to the list of references to all the attributes of a referenced table (in the order those attributes were defined in the table)

[<table_reference>.]*

where the optional table reference defaults to the query’s core table.

%%isql
-- # Retrieve all attributes of instructors

SELECT *
FROM instructor;

12 rows affected.

Done.

	ID	name	dept_name	salary
0	10101	Srinivasan	Comp. Sci.	65000.00
1	12121	Wu	Finance	90000.00
2	15151	Mozart	Music	40000.00
3	22222	Einstein	Physics	95000.00
4	32343	El Said	History	60000.00
5	33456	Gold	Physics	87000.00
6	45565	Katz	Comp. Sci.	75000.00
7	58583	Califieri	History	62000.00
8	76543	Singh	Finance	80000.00
9	76766	Crick	Biology	72000.00
10	83821	Brandt	Comp. Sci.	92000.00
11	98345	Kim	Elec. Eng.	80000.00

9.4. Sorting the result table#

By default, the database server does not guarantee a particular order for the tuples in the result table.

When, we desire to sorted access the rows of the result table, we use the ORDER BY clause to explicitly sort the rows of the result table.

Caution: sorting is a blocking operation, i.e. the 1st output tuple may not be accessible by the client until all the result tuples are found and sorted. Hence, the client often experiences a longer response time than if the result table was left unsorted.

%%isql
-- # Find the instructor's department names in ascending order
-- # and name in descending order

SELECT dept_name, name
FROM instructor
ORDER BY dept_name ASC, name DESC;

12 rows affected.

Done.

	dept_name	name
0	Biology	Crick
1	Comp. Sci.	Srinivasan
2	Comp. Sci.	Katz
3	Comp. Sci.	Brandt
4	Elec. Eng.	Kim
5	Finance	Wu
6	Finance	Singh
7	History	El Said
8	History	Califieri
9	Music	Mozart
10	Physics	Gold
11	Physics	Einstein

%%isql
-- # Find the instructor's department names in ascending order
-- # and name in descending order

SELECT name, dept_name
FROM instructor
ORDER BY name ASC, salary ASC;

12 rows affected.

Done.

	name	dept_name
0	Brandt	Comp. Sci.
1	Califieri	History
2	Crick	Biology
3	Einstein	Physics
4	El Said	History
5	Gold	Physics
6	Katz	Comp. Sci.
7	Kim	Elec. Eng.
8	Mozart	Music
9	Singh	Finance
10	Srinivasan	Comp. Sci.
11	Wu	Finance

9.5. Deriving additional attributes for the result table#

Use expressions in the SELECT clause to create new generated attributes for the result table based on its existing attributes. These expressions

evaluate to a scalar value for each one tuple in the result table
involve attribute references to (existing) attributes of result table
may use build-in or stored/user-defined functions
- numeric operators and functions, eg +, -, log(), sqrt()
- string manipulation operators and functions, eg regexp(), strlen(), upcase()
- date and time functions, eg month(), day()

The database server gives default names to such derived attributes.

%%isql
-- # Find the names and monthly salary of the instructors

SELECT name, salary/12
FROM instructor;

12 rows affected.

Done.

	name	salary/12
0	Srinivasan	5416.666667
1	Wu	7500.000000
2	Mozart	3333.333333
3	Einstein	7916.666667
4	El Said	5000.000000
5	Gold	7250.000000
6	Katz	6250.000000
7	Califieri	5166.666667
8	Singh	6666.666667
9	Crick	6000.000000
10	Brandt	7666.666667
11	Kim	6666.666667

9.6. Renaming attributes of the result table#

Use the AS alias operator for renaming attributes of the result table.

The names associated with the attribute references in the SELECT clause are visible to, and (often) convenient for, the client.

%%isql
-- # renaming existing attributes

SELECT name, dept_name AS Dept
FROM instructor;

12 rows affected.

Done.

	name	Dept
0	Srinivasan	Comp. Sci.
1	Wu	Finance
2	Mozart	Music
3	Einstein	Physics
4	El Said	History
5	Gold	Physics
6	Katz	Comp. Sci.
7	Califieri	History
8	Singh	Finance
9	Crick	Biology
10	Brandt	Comp. Sci.
11	Kim	Elec. Eng.

%%isql
-- # renaming generated attributes

SELECT name, salary/12 AS montlhy_salary
FROM instructor;

12 rows affected.

Done.

	name	montlhy_salary
0	Srinivasan	5416.666667
1	Wu	7500.000000
2	Mozart	3333.333333
3	Einstein	7916.666667
4	El Said	5000.000000
5	Gold	7250.000000
6	Katz	6250.000000
7	Califieri	5166.666667
8	Singh	6666.666667
9	Crick	6000.000000
10	Brandt	7666.666667
11	Kim	6666.666667

9.7. Filtering input tuples I#

So far, each tuple of the input table contributes one tuple to the result table.

We often desire to filter tuples from the input table in order to control which tuples are contributing towards the result table.

To specify such filtering, we use logical (boolean) predicates in the WHERE clause. These predicates often involve logical connectors, relative comparison operators, scalars, calls to SQL functions, and attribute references to attributes of the input tables.

Each tuple of the input table contributes a tuple to the result table only if the predicate in the WHERE clause evaluates to TRUE.

%%isql
-- # Find the names of Physics instructors

SELECT name
FROM instructor
WHERE dept_name = 'Physics';

2 rows affected.

Done.

	name
0	Einstein
1	Gold

%%isql
-- # Find the names of instructors with salary in the range 50K-70K

SELECT name
FROM instructor
WHERE salary BETWEEN 50000 and 70000;

3 rows affected.

Done.

	name
0	Srinivasan
1	El Said
2	Califieri

%%isql
-- # Find the names of Music instructors whose name ends in 't'

SELECT name
FROM instructor
WHERE dept_name = 'Music' AND name LIKE 'M__%t';

1 rows affected.

Done.

	name
0	Mozart

9.8. Limiting the range of the result table at the client#

By default, all the tuples in the result table are made available to the client by the database server. A client typically requests result tuples one-at-time using the cursor iterator mechanism.

The LIMIT clause allows us to further restrict the range of tuples that are made available to the client, by skiping the first $M$ and returning the next (up to) $N$ tuples in the result table

LIMIT <N> [OFFSET <M>]

%%isql
-- # Find the id and name of instructors;
-- # return up to 5 records after the first 2 found.

SELECT id, name
FROM instructor
-- ORDER BY salary
LIMIT 5 OFFSET 2;

5 rows affected.

Done.

	id	name
0	15151	Mozart
1	22222	Einstein
2	32343	El Said
3	33456	Gold
4	45565	Katz

9.9. Aggregating the result table#

Another way to reduce the length of the result table that is made available to the client is to aggregate (summarize) the tuples in the result table, and then make the aggregated result table (i.e. the collection of those summarized tuples) available to the client instead.

For brevity and convenience, we refer to the result of the table expression that corresponds to the FROM and WHERE clause of a SQL query statement as the pre-aggregation result table.

We compute table-wise aggregates (often, statistical summaries such as sum, count, average, min, max etc) of the attribute values of the tuples in the pre–aggregation result table by calling server-supported aggregate functions on attributes of the pre-aggregation result table.

The (aggregated) result table has the aggregates as columns and has at most one tuple.

%%isql
-- # Find the number, average salary, and number of unique departments and of all insructors

SELECT COUNT(*), AVG(salary), COUNT(DISTINCT dept_name)
FROM instructor;

1 rows affected.

Done.

	COUNT(*)	AVG(salary)	COUNT(DISTINCT dept_name)
0	12	74833.333333	7

Use the GROUP BY clause to partition the tuples of the pre-aggregation result table into disjoint groups based on their value on certain grouping attributes, and then aggregate the tuples in each group.

Group-wise aggregation creates a table with one tuple for each distinct group found. These tuples have as attributes the grouping attributes together with the aggregates computed for each group.

Attribute references, besides references to the aggregates, that appear in the SELECT and ORDER BY clauses of aggregate SQL queries must be functionally dependent on the aggregates or attribute references that appear in its GROUP BY clause.

%%isql
-- # Find the departments, the average-by-department salary,
-- # count-by-department instructors;
-- # order the result in decsending order of the instructors count

SELECT dept_name, AVG(salary), COUNT(*)
FROM instructor
GROUP BY dept_name
ORDER BY COUNT(*) DESC;

7 rows affected.

Done.

	dept_name	AVG(salary)	COUNT(*)
0	Comp. Sci.	77333.333333	3
1	Finance	85000.000000	2
2	History	61000.000000	2
3	Physics	91000.000000	2
4	Biology	72000.000000	1
5	Elec. Eng.	80000.000000	1
6	Music	40000.000000	1

To filter group-wise aggregation tuples, we use a boolean predicate in the HAVING clause. This HAVING clause predicate may have references to the aggregates or attributes that are functionally dependent on the GROUP BY attributes.

%%isql
-- # Find the departments and average-by-department salary of instructors,
-- # restricted to those departments with average salary above 70K

SELECT dept_name, AVG(salary)
FROM instructor
GROUP BY dept_name
HAVING AVG(salary) >= 70000;

5 rows affected.

Done.

	dept_name	AVG(salary)
0	Biology	72000.000000
1	Comp. Sci.	77333.333333
2	Elec. Eng.	80000.000000
3	Finance	85000.000000
4	Physics	91000.000000

%%isql
-- # Find the departments and average-by-department salary of instructors with salary less than 80K,
-- # restricted to those departments with average salary above 70K

SELECT dept_name, AVG(salary)
FROM instructor
-- WHERE dept_name LIKE '%y'
WHERE salary < 80000
GROUP BY dept_name
HAVING AVG(salary) >= 70000;

2 rows affected.

Done.

	dept_name	AVG(salary)
0	Biology	72000.000000
1	Comp. Sci.	70000.000000

10. Working with NULL in SQL queries#

To indicate that the value of a tuple’s attribute is unknown or does not exist, we set its value to the special value NULL.

The presence of NULL values complicates logical and comparison predicates by introducing a 3-valued logic: true, false, and unknown.

x	y	x AND y	x OR y	NOT x
True	True	True	True	False
True	False	False	True	False
False	False	False	False	True
unknown	True	unknown	True	unknown
unknown	False	False	unknown	unknown

Further,

a relative comparison with a NULL valued operand always evaluates to unknown
we need compare an operand’s value to NULL using

<operand> IS [NOT] NULL

%%isql
-- # Find takes records without a grade

SELECT *
FROM takes
WHERE grade IS NULL;

1 rows affected.

Done.

	ID	course_id	sec_id	semester	year	grade
0	98988	BIO-301	1	Summer	2010	None

A useful function when working with NULLs is the COALESCE SQL function which returns the 1st non-NULL value in its arguments (in the left-to-right order):

%%isql
SELECT COALESCE(NULL, NULL, NULL, 4), COALESCE(NULL, 1, NULL, 4);

1 rows affected.

Done.

	COALESCE(NULL, NULL, NULL, 4)	COALESCE(NULL, 1, NULL, 4)
0	4	1

%%isql
-- # Find takes records without a grade

SELECT *, COALESCE(grade, 'oops')
FROM takes
where grade is Null or grade = 'A';

8 rows affected.

Done.

	ID	course_id	sec_id	semester	year	grade	COALESCE(grade, 'oops')
0	00128	CS-101	1	Fall	2009	A	A
1	12345	CS-190	2	Spring	2009	A	A
2	12345	CS-315	1	Spring	2010	A	A
3	12345	CS-347	1	Fall	2009	A	A
4	76543	CS-101	1	Fall	2009	A	A
5	76543	CS-319	2	Spring	2010	A	A
6	98988	BIO-101	1	Summer	2009	A	A
7	98988	BIO-301	1	Summer	2010	None	oops

11. Querying multiple input tables I: Cartesian Product#

When we desire to query data from multiple input tables, we include references to those input tables in the FROM clause.

Given a comma list of table references in the FROM clause, for each possible way to choose a tuple from each referenced table, construct a new tuple by juxtaposing (concatenating) the chosen tuples (in the same order the tables appear in the list). This is essentially the Cartesian product of the referenced tables. We often refer to this new tuple as a joined input tuple.

It is useful to view the Cartesian product of two tables as an (nested–loop) iterator

Cartesian product R x S is logically given by
    foreach pair of tuples (r, s) such that r is in R and s is in S
        yield juxtapose(r, s)

%%isql
-- # Find the (Cartesian) product of the instructor and teaches tables

SELECT *
FROM instructor, teaches
LIMIT 30;

30 rows affected.

Done.

	ID	name	dept_name	salary	ID	course_id	sec_id	semester	year
0	98345	Kim	Elec. Eng.	80000.00	76766	BIO-101	1	Summer	2009
1	83821	Brandt	Comp. Sci.	92000.00	76766	BIO-101	1	Summer	2009
2	76766	Crick	Biology	72000.00	76766	BIO-101	1	Summer	2009
3	76543	Singh	Finance	80000.00	76766	BIO-101	1	Summer	2009
4	58583	Califieri	History	62000.00	76766	BIO-101	1	Summer	2009
5	45565	Katz	Comp. Sci.	75000.00	76766	BIO-101	1	Summer	2009
6	33456	Gold	Physics	87000.00	76766	BIO-101	1	Summer	2009
7	32343	El Said	History	60000.00	76766	BIO-101	1	Summer	2009
8	22222	Einstein	Physics	95000.00	76766	BIO-101	1	Summer	2009
9	15151	Mozart	Music	40000.00	76766	BIO-101	1	Summer	2009
10	12121	Wu	Finance	90000.00	76766	BIO-101	1	Summer	2009
11	10101	Srinivasan	Comp. Sci.	65000.00	76766	BIO-101	1	Summer	2009
12	98345	Kim	Elec. Eng.	80000.00	76766	BIO-301	1	Summer	2010
13	83821	Brandt	Comp. Sci.	92000.00	76766	BIO-301	1	Summer	2010
14	76766	Crick	Biology	72000.00	76766	BIO-301	1	Summer	2010
15	76543	Singh	Finance	80000.00	76766	BIO-301	1	Summer	2010
16	58583	Califieri	History	62000.00	76766	BIO-301	1	Summer	2010
17	45565	Katz	Comp. Sci.	75000.00	76766	BIO-301	1	Summer	2010
18	33456	Gold	Physics	87000.00	76766	BIO-301	1	Summer	2010
19	32343	El Said	History	60000.00	76766	BIO-301	1	Summer	2010
20	22222	Einstein	Physics	95000.00	76766	BIO-301	1	Summer	2010
21	15151	Mozart	Music	40000.00	76766	BIO-301	1	Summer	2010
22	12121	Wu	Finance	90000.00	76766	BIO-301	1	Summer	2010
23	10101	Srinivasan	Comp. Sci.	65000.00	76766	BIO-301	1	Summer	2010
24	98345	Kim	Elec. Eng.	80000.00	10101	CS-101	1	Fall	2009
25	83821	Brandt	Comp. Sci.	92000.00	10101	CS-101	1	Fall	2009
26	76766	Crick	Biology	72000.00	10101	CS-101	1	Fall	2009
27	76543	Singh	Finance	80000.00	10101	CS-101	1	Fall	2009
28	58583	Califieri	History	62000.00	10101	CS-101	1	Fall	2009
29	45565	Katz	Comp. Sci.	75000.00	10101	CS-101	1	Fall	2009

The Cartesian product sometimes is called the CROSS JOIN operator, .e.g.

instructor CROSS JOIN teaches

A tuple variable for a table is an iterator variable that iterates (loops) over the tuples in that table. Tuple variables allow us to refer to tuple attributes from specific tables.

Each table reference that occurs in the FROM clause provides us with a tuple variable that ranges over tuples of that table. The implicit (default) name of that tuple variable is the table’s name.

The notion of tuple variables is handy for resolving ambiguities among attribute references to homonymous attributes of the referenced tables in the FROM clause.

%%isql
-- # Find id, name, course ID, semester, and year of courses taught by Biology instructors

SELECT instructor.id, name, course_id, semester, year
FROM instructor, teaches
WHERE instructor.id = teaches.id ;

15 rows affected.

Done.

	id	name	course_id	semester	year
0	10101	Srinivasan	CS-101	Fall	2009
1	10101	Srinivasan	CS-315	Spring	2010
2	10101	Srinivasan	CS-347	Fall	2009
3	12121	Wu	FIN-201	Spring	2010
4	15151	Mozart	MU-199	Spring	2010
5	22222	Einstein	PHY-101	Fall	2009
6	32343	El Said	HIS-351	Spring	2010
7	45565	Katz	CS-101	Spring	2010
8	45565	Katz	CS-319	Spring	2010
9	76766	Crick	BIO-101	Summer	2009
10	76766	Crick	BIO-301	Summer	2010
11	83821	Brandt	CS-190	Spring	2009
12	83821	Brandt	CS-190	Spring	2009
13	83821	Brandt	CS-319	Spring	2010
14	98345	Kim	EE-181	Spring	2009

Use the AS alias operator to rename a table reference and its implicit tuple variable in the FROM clause

<table_reference> [AS] <table_alias>

Renaming table references is handy when multiple references to the same table are desired in the FROM clause.

%%isql
-- # Find the attributes of instructors that have higher salary than
-- # some Physics instructor, together with the name of such Physics instructor

SELECT R.*, S.name
FROM instructor AS R, instructor AS S
WHERE R.salary > S.salary AND S.dept_name = 'Physics';

3 rows affected.

Done.

	ID	name	dept_name	salary	name
0	12121	Wu	Finance	90000.00	Gold
1	22222	Einstein	Physics	95000.00	Gold
2	83821	Brandt	Comp. Sci.	92000.00	Gold

12. Quering multiple input tables II: Joins#

Certain expressions are frequently encountered in practice when querying multiple tables. To simplify the task of developing and maintaining such expressions, special syntactic constructs (operators) are defined.

Join operators are infix binary operators on tables (i.e. have a LHS and a RHS operand table).

Join operators appear in the FROM clause of SQL queries.

Further, join operators are associative, which implies that explicit parenthesization is not required (analogous to integer addition, eg (1+2)+3 == 1+2+3).

12.1. Join types and conditions#

The Cartesian product $R \times S$ is a crude join relational operator:

for each pair of tuples, one from each of the operand tables, it constructs a tuple by concatenating tuples in the pair indiscriminately.

Often, we wish to concatenate the tuples of a pair only for some pairs with “matching” LHS and RHS tuple-parts. This kind of operation is a conventional (refined) join relational operator.

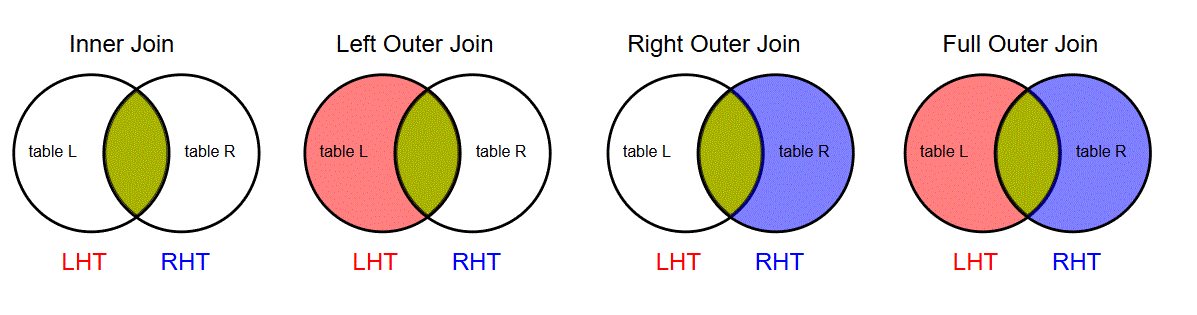

There are four types of conventional joins operators

INNER: only tuple pairs that satisfy the matching conditions contribute a tuple to the result table
[LEFT|RIGHT|FULL] OUTER: in addition to the pairs of INNER matching tuples, we consider unmatched tuples only from the LHS, or the RHS, or either LHS or RHS operand tables respectively. Each unmatched tuple is paired with a tuple from the opposite side constructed as follows: its attributes used for matching take the value of their corresponding attribute of the unmatched tuple, the rest of the attributes are set to NULL.

There are three matching (join) condition variants:

NATURAL : the tuples of the pair match if they agree (have the same value) on ALL of the attributes with the same name, suppressing duplicate attributes
USING(attributes): the tuples of the pair match if they agree on the listed attributes, suppressing duplicate attributes
ON predicate: the tuples of the pair match if they satisfy the given logical predicate expression.

Some systems have a CROSS JOIN which corresponds to the Cartesian product.

12.2. Join syntax variants#

The syntax for variants of a joined table expression

<lht> NATURAL [INNER] JOIN <rht>
<lht> NATURAL [LEFT|RIGHT|FULL] [OUTER] JOIN <rht>
<lht> [INNER] JOIN <rht> USING(<attributes>)
<lht> [LEFT|RIGHT|FULL] [OUTER] JOIN USING(<attributes>)
<lht> [INNER] JOIN <rht> ON <condition>
<lht> [LEFT|RIGHT|FULL] [OUTER] JOIN <rht> ON <predicate_condition>

where lht and rht denote the left hand side and right hand side table references.

%%isql
SELECT *
FROM instructor NATURAL INNER JOIN teaches;

15 rows affected.

Done.

	ID	name	dept_name	salary	course_id	sec_id	semester	year
0	10101	Srinivasan	Comp. Sci.	65000.00	CS-101	1	Fall	2009
1	10101	Srinivasan	Comp. Sci.	65000.00	CS-315	1	Spring	2010
2	10101	Srinivasan	Comp. Sci.	65000.00	CS-347	1	Fall	2009
3	12121	Wu	Finance	90000.00	FIN-201	1	Spring	2010
4	15151	Mozart	Music	40000.00	MU-199	1	Spring	2010
5	22222	Einstein	Physics	95000.00	PHY-101	1	Fall	2009
6	32343	El Said	History	60000.00	HIS-351	1	Spring	2010
7	45565	Katz	Comp. Sci.	75000.00	CS-101	1	Spring	2010
8	45565	Katz	Comp. Sci.	75000.00	CS-319	1	Spring	2010
9	76766	Crick	Biology	72000.00	BIO-101	1	Summer	2009
10	76766	Crick	Biology	72000.00	BIO-301	1	Summer	2010
11	83821	Brandt	Comp. Sci.	92000.00	CS-190	1	Spring	2009
12	83821	Brandt	Comp. Sci.	92000.00	CS-190	2	Spring	2009
13	83821	Brandt	Comp. Sci.	92000.00	CS-319	2	Spring	2010
14	98345	Kim	Elec. Eng.	80000.00	EE-181	1	Spring	2009

%%isql
SELECT *
FROM instructor INNER JOIN teaches USING(id);

15 rows affected.

Done.

	ID	name	dept_name	salary	course_id	sec_id	semester	year
0	10101	Srinivasan	Comp. Sci.	65000.00	CS-101	1	Fall	2009
1	10101	Srinivasan	Comp. Sci.	65000.00	CS-315	1	Spring	2010
2	10101	Srinivasan	Comp. Sci.	65000.00	CS-347	1	Fall	2009
3	12121	Wu	Finance	90000.00	FIN-201	1	Spring	2010
4	15151	Mozart	Music	40000.00	MU-199	1	Spring	2010
5	22222	Einstein	Physics	95000.00	PHY-101	1	Fall	2009
6	32343	El Said	History	60000.00	HIS-351	1	Spring	2010
7	45565	Katz	Comp. Sci.	75000.00	CS-101	1	Spring	2010
8	45565	Katz	Comp. Sci.	75000.00	CS-319	1	Spring	2010
9	76766	Crick	Biology	72000.00	BIO-101	1	Summer	2009
10	76766	Crick	Biology	72000.00	BIO-301	1	Summer	2010
11	83821	Brandt	Comp. Sci.	92000.00	CS-190	1	Spring	2009
12	83821	Brandt	Comp. Sci.	92000.00	CS-190	2	Spring	2009
13	83821	Brandt	Comp. Sci.	92000.00	CS-319	2	Spring	2010
14	98345	Kim	Elec. Eng.	80000.00	EE-181	1	Spring	2009

%%isql
SELECT *
FROM instructor INNER JOIN teaches ON instructor.id = teaches.id;

15 rows affected.

Done.

	ID	name	dept_name	salary	ID	course_id	sec_id	semester	year
0	10101	Srinivasan	Comp. Sci.	65000.00	10101	CS-101	1	Fall	2009
1	10101	Srinivasan	Comp. Sci.	65000.00	10101	CS-315	1	Spring	2010
2	10101	Srinivasan	Comp. Sci.	65000.00	10101	CS-347	1	Fall	2009
3	12121	Wu	Finance	90000.00	12121	FIN-201	1	Spring	2010
4	15151	Mozart	Music	40000.00	15151	MU-199	1	Spring	2010
5	22222	Einstein	Physics	95000.00	22222	PHY-101	1	Fall	2009
6	32343	El Said	History	60000.00	32343	HIS-351	1	Spring	2010
7	45565	Katz	Comp. Sci.	75000.00	45565	CS-101	1	Spring	2010
8	45565	Katz	Comp. Sci.	75000.00	45565	CS-319	1	Spring	2010
9	76766	Crick	Biology	72000.00	76766	BIO-101	1	Summer	2009
10	76766	Crick	Biology	72000.00	76766	BIO-301	1	Summer	2010
11	83821	Brandt	Comp. Sci.	92000.00	83821	CS-190	1	Spring	2009
12	83821	Brandt	Comp. Sci.	92000.00	83821	CS-190	2	Spring	2009
13	83821	Brandt	Comp. Sci.	92000.00	83821	CS-319	2	Spring	2010
14	98345	Kim	Elec. Eng.	80000.00	98345	EE-181	1	Spring	2009

%%isql
SELECT *
FROM instructor NATURAL LEFT OUTER JOIN teaches;

18 rows affected.

Done.

	ID	name	dept_name	salary	course_id	sec_id	semester	year
0	10101	Srinivasan	Comp. Sci.	65000.00	CS-101	1	Fall	2009
1	10101	Srinivasan	Comp. Sci.	65000.00	CS-315	1	Spring	2010
2	10101	Srinivasan	Comp. Sci.	65000.00	CS-347	1	Fall	2009
3	12121	Wu	Finance	90000.00	FIN-201	1	Spring	2010
4	15151	Mozart	Music	40000.00	MU-199	1	Spring	2010
5	22222	Einstein	Physics	95000.00	PHY-101	1	Fall	2009
6	32343	El Said	History	60000.00	HIS-351	1	Spring	2010
7	33456	Gold	Physics	87000.00	None	None	None	None
8	45565	Katz	Comp. Sci.	75000.00	CS-101	1	Spring	2010
9	45565	Katz	Comp. Sci.	75000.00	CS-319	1	Spring	2010
10	58583	Califieri	History	62000.00	None	None	None	None
11	76543	Singh	Finance	80000.00	None	None	None	None
12	76766	Crick	Biology	72000.00	BIO-101	1	Summer	2009
13	76766	Crick	Biology	72000.00	BIO-301	1	Summer	2010
14	83821	Brandt	Comp. Sci.	92000.00	CS-190	1	Spring	2009
15	83821	Brandt	Comp. Sci.	92000.00	CS-190	2	Spring	2009
16	83821	Brandt	Comp. Sci.	92000.00	CS-319	2	Spring	2010
17	98345	Kim	Elec. Eng.	80000.00	EE-181	1	Spring	2009

%%isql --dialect mysql
SELECT *
FROM instructor NATURAL RIGHT OUTER JOIN teaches;

15 rows affected.

Done.

	ID	course_id	sec_id	semester	year	name	dept_name	salary
0	76766	BIO-101	1	Summer	2009	Crick	Biology	72000.00
1	76766	BIO-301	1	Summer	2010	Crick	Biology	72000.00
2	10101	CS-101	1	Fall	2009	Srinivasan	Comp. Sci.	65000.00
3	45565	CS-101	1	Spring	2010	Katz	Comp. Sci.	75000.00
4	83821	CS-190	1	Spring	2009	Brandt	Comp. Sci.	92000.00
5	83821	CS-190	2	Spring	2009	Brandt	Comp. Sci.	92000.00
6	10101	CS-315	1	Spring	2010	Srinivasan	Comp. Sci.	65000.00
7	45565	CS-319	1	Spring	2010	Katz	Comp. Sci.	75000.00
8	83821	CS-319	2	Spring	2010	Brandt	Comp. Sci.	92000.00
9	10101	CS-347	1	Fall	2009	Srinivasan	Comp. Sci.	65000.00
10	98345	EE-181	1	Spring	2009	Kim	Elec. Eng.	80000.00
11	12121	FIN-201	1	Spring	2010	Wu	Finance	90000.00
12	32343	HIS-351	1	Spring	2010	El Said	History	60000.00
13	15151	MU-199	1	Spring	2010	Mozart	Music	40000.00
14	22222	PHY-101	1	Fall	2009	Einstein	Physics	95000.00

%%isql
SELECT *
FROM teaches NATURAL LEFT OUTER JOIN instructor;

15 rows affected.

Done.

	ID	course_id	sec_id	semester	year	name	dept_name	salary
0	76766	BIO-101	1	Summer	2009	Crick	Biology	72000.00
1	76766	BIO-301	1	Summer	2010	Crick	Biology	72000.00
2	10101	CS-101	1	Fall	2009	Srinivasan	Comp. Sci.	65000.00
3	45565	CS-101	1	Spring	2010	Katz	Comp. Sci.	75000.00
4	83821	CS-190	1	Spring	2009	Brandt	Comp. Sci.	92000.00
5	83821	CS-190	2	Spring	2009	Brandt	Comp. Sci.	92000.00
6	10101	CS-315	1	Spring	2010	Srinivasan	Comp. Sci.	65000.00
7	45565	CS-319	1	Spring	2010	Katz	Comp. Sci.	75000.00
8	83821	CS-319	2	Spring	2010	Brandt	Comp. Sci.	92000.00
9	10101	CS-347	1	Fall	2009	Srinivasan	Comp. Sci.	65000.00
10	98345	EE-181	1	Spring	2009	Kim	Elec. Eng.	80000.00
11	12121	FIN-201	1	Spring	2010	Wu	Finance	90000.00
12	32343	HIS-351	1	Spring	2010	El Said	History	60000.00
13	15151	MU-199	1	Spring	2010	Mozart	Music	40000.00
14	22222	PHY-101	1	Fall	2009	Einstein	Physics	95000.00

%%isql --dialect ansi

SELECT *
FROM instructor NATURAL FULL OUTER JOIN teaches;

current connection dialect 'mysql' differs from target dialect 'ansi'. Ignoring sql.

Done.

12.2.1. Foreign key references and joins#

Foreign key references easily induce simple join expressions for combining information from multiple tables

For example, since the table teaches has the foreign key reference

id REFERENCES instructor(id)

the (most likely intended) teaches-instructor joined table would be

teaches RIGHT OUTER JOIN instructor USING(id)

13. Compound SQL statements: set operations on tables#

Compound SQL statements are constructed by applying (binary) set-like operators on table operands, where those operands are often the result tables of sub-queries.

Suppose we have two tables whose attributes can be put into 1-1 correspondence with respect to type (and name if named). Such tables are called union-compatible since we can take the (multi-)set union of their tuples. In addition, we can also find their set intersection and set difference. To this end, we use the UNION, INTERSECT, and EXCEPT operators in SQL.

Moreover, when considering each table as a bag, we can take the bag union, intersection, and difference of union-compatible (bag) tables. Recall, that a bag retains duplicates which are suppressed in a set. We use the UNION ALL, INTERSECT ALL, and EXCEPT ALL operators in SQL to retain duplicates.

Caution: UNION suppresses duplicate tuples from its result table by default.

Some database servers do not implement all these compound operators.

%%isql
SELECT course_id FROM teaches WHERE year = 2010;

8 rows affected.

Done.

	course_id
0	BIO-301
1	CS-101
2	CS-315
3	CS-319
4	CS-319
5	FIN-201
6	HIS-351
7	MU-199

%%isql
-- # Find the ids of courses taught in 2009 or 2010

SELECT course_id FROM teaches WHERE year = 2009
UNION
SELECT course_id FROM teaches WHERE year = 2010;

12 rows affected.

Done.

	course_id
0	BIO-101
1	CS-101
2	CS-190
3	CS-347
4	EE-181
5	PHY-101
6	BIO-301
7	CS-315
8	CS-319
9	FIN-201
10	HIS-351
11	MU-199

%%isql
-- # Find the ids of courses taught in 2009 or 2010 without suppressing duplicates

SELECT course_id FROM teaches WHERE year = 2009
UNION ALL
SELECT course_id FROM teaches WHERE year = 2010;

15 rows affected.

Done.

	course_id
0	BIO-101
1	CS-101
2	CS-190
3	CS-190
4	CS-347
5	EE-181
6	PHY-101
7	BIO-301
8	CS-101
9	CS-315
10	CS-319
11	CS-319
12	FIN-201
13	HIS-351
14	MU-199

Is the result sorted? (why?)

%%isql --dialect sqlite
-- # Find the ids of courses taught in 2009 and 2010

SELECT course_id FROM teaches WHERE year = 2009
INTERSECT
SELECT course_id FROM teaches WHERE year = 2010;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql
SELECT course_id FROM teaches WHERE year = 2009;

7 rows affected.

Done.

	course_id
0	BIO-101
1	CS-101
2	CS-190
3	CS-190
4	CS-347
5	EE-181
6	PHY-101

%%isql
SELECT course_id FROM teaches WHERE year = 2010;

8 rows affected.

Done.

	course_id
0	BIO-301
1	CS-101
2	CS-315
3	CS-319
4	CS-319
5	FIN-201
6	HIS-351
7	MU-199

%%isql --dialect sqlite
-- # Find the ids of courses taught in 2009 but not 2010

SELECT course_id FROM teaches WHERE year = 2009
EXCEPT
SELECT course_id FROM teaches WHERE year = 2010;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql
SELECT course_id FROM teaches WHERE year = 2009 and year != 2010;

7 rows affected.

Done.

	course_id
0	BIO-101
1	CS-101
2	CS-190
3	CS-190
4	CS-347
5	EE-181
6	PHY-101

One can get the INTERSECT and EXCEPT functionality using the

[NOT] IN <subquery>

nested subquery construct, which is discussed further below (eg. to find table intersections in MySQL).

14. Nested subqueries#

Since the result of a SQL query is a table, we can compose queries to construct highly expressive queries.

SQL sub-queries may appear anywhere a table reference may be used in a SQL query statement, e.g.

in a FROM clause
as an operand of a UNION, INTERSECT, EXCEPT compound operator
as the right-hand-side (RHS) operand of the IN operator
as the operand of the EXISTS and UNIQUE operators
anywhere a scalar value may be used provided the subquery is a scalar subquery

14.1. Uncorrelated vs correlated nested subqueries#

Nesting sub-queries leads to a natural nesting of their scopes.

A nested sub-query is correlated iff it contains a table or attribute reference that resolves to a reference in its outer sub-query. A nested sub-query that is not correlated is called uncorrelated.

The result table of a correlated nested sub-query is dependent on its table and attribute references that resolve to a reference in its outer sub-query. Since table references double as tuple variable references, the result of a nested correlated sub-query is often thought of as a function of tuple variables ranging over table references in the outer sub-query. Conceptually, the nested subquery is re-evaluated as those tuple variables iterate over the outer sub-query’s tables.

In contrast, the result of an uncorrelated nested sub-query remains unchanged, and hence it does not need to be re-evaluated.

14.2. Filtering outer tuples using boolean predicates on sub-query result tables#

14.2.1. Filtering based on value-operator-table predicates#

To filter input tuples based on membership of the tuple’s value (either scalar or a sub-tuple) in a collection of values or table, we can use the IN logical operator to make a boolean predicate

<value> [NOT] IN (<tuple_values>)
<value> [NOT] IN <SQL_subquery>

The LHS tuple should be union-compatible with the RHS collection of values or table.

%%isql
-- # Find the attributes of instructors of the History and Biology department.

SELECT *
FROM instructor
WHERE dept_name IN ('History', 'Biology');

3 rows affected.

Done.

	ID	name	dept_name	salary
0	76766	Crick	Biology	72000.00
1	32343	El Said	History	60000.00
2	58583	Califieri	History	62000.00

%%isql
-- # Find the unique ids of courses taught in 2009 and 2010

SELECT DISTINCT course_id
FROM teaches
WHERE year=2009 AND
      course_id IN (SELECT course_id
                    FROM teaches
                    WHERE year=2010);

1 rows affected.

Done.

	course_id
0	CS-101

%%isql
-- # Find the unique student ids that took a class taught by an instructor named 'Mozart'

SELECT DISTINCT id
FROM takes
WHERE (course_id, semester, year) IN (SELECT course_id, semester, year
                                       FROM teaches, instructor
                                       WHERE teaches.id = instructor.id AND
                                            name = 'Mozart');

1 rows affected.

Done.

	id
0	55739

%%isql
-- # Solving the previous query without nested subqueries

SELECT DISTINCT takes.id
FROM takes, teaches, instructor
WHERE takes.course_id = teaches.course_id AND
      takes.semester = teaches.semester AND
      takes.year = teaches.year AND
      teaches.id = instructor.id AND instructor.name = 'Mozart';

1 rows affected.

Done.

	id
0	55739

Often the former is easier to comprehend, debug, and analyze than the latter.

Furthermore, SQL provides additional predicate constructs for comparing a value with values in a sub-query’s result table using SOME and ALL modifiers to the relational comparison operators <, >, =, etc

%%isql
SELECT * FROM instructor ORDER BY dept_name, salary;

12 rows affected.

Done.

	ID	name	dept_name	salary
0	76766	Crick	Biology	72000.00
1	10101	Srinivasan	Comp. Sci.	65000.00
2	45565	Katz	Comp. Sci.	75000.00
3	83821	Brandt	Comp. Sci.	92000.00
4	98345	Kim	Elec. Eng.	80000.00
5	76543	Singh	Finance	80000.00
6	12121	Wu	Finance	90000.00
7	32343	El Said	History	60000.00
8	58583	Califieri	History	62000.00
9	15151	Mozart	Music	40000.00
10	33456	Gold	Physics	87000.00
11	22222	Einstein	Physics	95000.00

%%isql --dialect mysql
-- # Find the unique instructor names with salary greater than some instructor in 'Physics'.

SELECT DISTINCT name
FROM instructor
WHERE salary > SOME(SELECT salary
                     FROM instructor
                     WHERE dept_name = 'Physics');

3 rows affected.

Done.

	name
0	Wu
1	Einstein
2	Brandt

%%isql
-- # Find the unique instructor names with salary greater than some instructor in 'Physics'.

SELECT DISTINCT R.name
FROM instructor as R, instructor as S
WHERE R.salary > S.salary and S.dept_name = 'Physics';

3 rows affected.

Done.

	name
0	Wu
1	Einstein
2	Brandt

%%isql --dialect mysql
-- # Find the unique instructor names with salary greater than all instructors in 'Physics'.

SELECT DISTINCT name
FROM instructor
WHERE salary > ALL(SELECT salary
                     FROM instructor
                     WHERE dept_name = 'Physics');

Done.

	name

14.2.2. Filtering using table-wise predicates#

Often, in correlated nested sub-queries, we would like to filter outer tuples based on whether the result table of the correlated nested sub-query (which is a function of outer tuples) is empty or contains duplicates. To accomplish this, we use the EXISTS and UNIQUE boolean operators in SQL

EXISTS to test the whether the result table of a sub-query is empty or not.
UNIQUE to test whether the result table of a nested sub-query has duplicate tuples or not.

[NOT] EXISTS (<subquery>)
[NOT] UNIQUE (<subquery>)

%%isql --dialect sqlite
-- # Find the students that took ALL Physics courses

SELECT DISTINCT S.name
FROM student AS S
WHERE NOT EXISTS (SELECT course_id
                  FROM course
                  WHERE dept_name = 'Physics'

                  EXCEPT

                  SELECT course_id
                  FROM takes AS T
                  WHERE T.id = S.id);

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql --dialect mysql
-- # Find the students that took ALL Physics courses

SELECT DISTINCT S.name
FROM student AS S
WHERE NOT EXISTS (SELECT course_id
                  FROM course
                  WHERE dept_name = 'Physics'
                        AND course_id NOT IN
                               (SELECT course_id
                                FROM takes AS T
                                WHERE T.id = S.id));

1 rows affected.

Done.

	name
0	Peltier

The query above implements the relational division operator between two tables, where the quotient table is defined to be the maximal table whose cross join with the divisor table $S$ is contained in the dividend table $R$, ie

(14.1)#\[\begin{equation} R \div S \triangleq \max\{Q \ : \ Q \times S \subseteq R\}. \end{equation}\]

This is analogous to integer division. For the example query here, the dividend and divisor relations are

%%isql
-- # the dividend relation

SELECT name, course_id FROM student, takes WHERE student.id = takes.id ORDER BY name, course_id;

22 rows affected.

Done.

	name	course_id
0	Aoi	EE-181
1	Bourikas	CS-101
2	Bourikas	CS-315
3	Brandt	HIS-351
4	Brown	CS-101
5	Brown	CS-319
6	Chavez	FIN-201
7	Levy	CS-101
8	Levy	CS-101
9	Levy	CS-319
10	Peltier	PHY-101
11	Sanchez	MU-199
12	Shankar	CS-101
13	Shankar	CS-190
14	Shankar	CS-315
15	Shankar	CS-347
16	Tanaka	BIO-101
17	Tanaka	BIO-301
18	Williams	CS-101
19	Williams	CS-190
20	Zhang	CS-101
21	Zhang	CS-347

%%isql
-- # the divisor relation

SELECT DISTINCT course_id FROM course WHERE dept_name = 'Physics' ORDER BY course_id;

1 rows affected.

Done.

	course_id
0	PHY-101

14.3. Scalar sub-queries#

Sub-queries whose result table has a single tuple with a single attribute are called scalar sub-queries.

In general, scalar sub-queries may appear anywhere a scalar is allowed in SQL statements.

Often scalar sub-queries are correlated.

%%isql
-- # Find the names and their number of instructors of all departments

SELECT dept_name, (SELECT COUNT(*)
                   FROM instructor
                   WHERE department.dept_name = instructor.dept_name)
                  AS num_instructors
FROM department;

7 rows affected.

Done.

	dept_name	num_instructors
0	Biology	1
1	Comp. Sci.	3
2	Elec. Eng.	1
3	Finance	2
4	History	2
5	Music	1
6	Physics	2

%%isql
SELECT dept_name, COUNT(id)  AS no_instructor
FROM department NATURAL LEFT OUTER JOIN instructor
GROUP BY dept_name;

7 rows affected.

Done.

	dept_name	no_instructor
0	Biology	1
1	Comp. Sci.	3
2	Elec. Eng.	1
3	Finance	2
4	History	2
5	Music	1
6	Physics	2

15. Derived tables#

Derived tables are result tables of table expressions (SQL queries).

15.1. Views#

Persistent database objects (e.g. tables) exist in the database until a client explicitly discards (drops) them.

A view is a persistent database object that is a named derived table, defined with a SQL statement

CREATE VIEW [IF NOT EXISTS] <view_name>(<attributes>) AS <query>;

By default, the derived table represented by a view is not materialized (have its tuples stored). Instead, before evaluating a query, the server replaces each view reference with its defining SQL query, (i.e. effectively a lexical expansion of a macro mechanism).

The decision of whether to materializing a view or not requires an analysis of the performance benefits due to evaluating a more complex SQL query (due to replacing a view reference with its defining sub-query) vs the storage and time costs due to storing and updating the stored table materializing the view whenever the view’s referenced tables are updated.

Views are useful since they

loosen the coupling of clients from the actual schema of the tables used to define them i.e. implement the view-independence
present a database schema customizable to the client, thus reducing the database complexity visible by each client
facilitate code-reuse

Views are also useful from a security perspective, since when invoked by a client they execute (by default) using the access privileges of the view’s creator agent (i.e. the agent of the invoking client does not need to have access privileges to the view’s underlying tables). This is analogous to the setuid permissions in Unix filesystems.

%%isql --dialect sqlite

CREATE VIEW IF NOT EXISTS physics_faculty(fid, name, dept) AS
  SELECT id, name, dept_name
  FROM instructor
  WHERE dept_name = 'Physics';

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql --dialect mysql

CREATE OR REPLACE VIEW physics_faculty(fid, name, dept) AS
  SELECT id, name, dept_name
  FROM instructor
  WHERE dept_name = 'Physics';

Done.

%%isql
SELECT * FROM physics_faculty;

2 rows affected.

Done.

	fid	name	dept
0	22222	Einstein	Physics
1	33456	Gold	Physics

%%isql
DROP VIEW physics_faculty;

Done.

16. Transient tables and the WITH clause#

Transient tables are named derived tables whose lexical and temporal scope is limited to that of a single SQL statement.

16.1. Common Table Expressions#

A common table expression (CTE) is a named transient derived table corresponding to the result of a SQL query, which upon declared in a statement, it can be subsequently referenced within the same statement.

<table_name>(<attributes>) AS <SQL_query_statement>

A WITH clause creates transient derived tables using a sequence of CTEs.

A CTE may contain table references to other CTEs that preceded it in the WITH clause.

A SQL statement may have a WITH clause; if it does. then it may contain references to transient tables defined in its WITH clause

WITH
<CTEs>
<SQL_query_statement>;

%%isql
-- # Find the names of the highest payed instructors

WITH
    HighestSalary(value) AS (SELECT MAX(salary)
                             FROM instructor)
SELECT name
FROM instructor, HighestSalary
WHERE instructor.salary = HighestSalary.value;

1 rows affected.

Done.

	name
0	Einstein

17. Temporary tables#

A temporary table is like an ordinary base table, except that it is effectively materialized anew in each session, and
it is automatically garbage collected once it is no longer used by a client

CREATE TEMPORARY TABLE <tablename> ...

%%isql
DROP TABLE IF EXISTS _course;
CREATE TEMPORARY TABLE IF NOT EXISTS _course AS
    SELECT * FROM course;

13 rows affected.

Done.

Let us create two temporary tables to try some data modification statements in below.

%%isql
-- # Create a temporary table for teaches
DROP TABLE IF EXISTS _teaches;

CREATE TEMPORARY TABLE IF NOT EXISTS _teaches AS
   SELECT * FROM teaches WHERE id is NULL;

Done.

%%isql
-- # Create a temporary table _instructor by cloning the instructor table,
-- # and then adding a new column to it, named 'zipcode' with default value '21250'
DROP TABLE IF EXISTS _instructor;

CREATE TEMPORARY TABLE _instructor AS
   SELECT * FROM instructor;

ALTER TABLE _instructor ADD zipcode CHAR(5) DEFAULT '21250';

12 rows affected.

Done.

%isql select * from _instructor;

12 rows affected.

Done.

	ID	name	dept_name	salary	zipcode
0	10101	Srinivasan	Comp. Sci.	65000.00	21250
1	12121	Wu	Finance	90000.00	21250
2	15151	Mozart	Music	40000.00	21250
3	22222	Einstein	Physics	95000.00	21250
4	32343	El Said	History	60000.00	21250
5	33456	Gold	Physics	87000.00	21250
6	45565	Katz	Comp. Sci.	75000.00	21250
7	58583	Califieri	History	62000.00	21250
8	76543	Singh	Finance	80000.00	21250
9	76766	Crick	Biology	72000.00	21250
10	83821	Brandt	Comp. Sci.	92000.00	21250
11	98345	Kim	Elec. Eng.	80000.00	21250

18. Modifying the tuples of a table#

18.1. Inserting tuples#

To append tuples to a table, we use one of the following variants of the INSERT SQL statement:

INSERT INTO <table_name> VALUES(<list_of_values>);
INSERT INTO <table_name>(<list_of_attributes>) VALUES(<list_of_values>);
INSERT INTO <table_name> <SQL_SELECT_query_statement> ;

The attributes and values are in left-to-right 1-1 correspondence. For the 1st variant, the left-to-right order of the attributes is the order defined during the table creation.

%%isql
SELECT * FROM _teaches;

Done.

	ID	course_id	sec_id	semester	year

%%isql --dialect sqlite|mysql
INSERT INTO _teaches VALUES(1, 'CS-101', 1, 'Fall', 2009);
INSERT INTO _teaches VALUES(1, 'CS-101', 2, 'Spring', 2010);
INSERT INTO _teaches (year, semester, course_id, sec_id, id) VALUES(2010, 'Spring','CS-102', 1, 1);

SELECT * FROM _teaches WHERE id=1;

1 rows affected.

3 rows affected.

Done.

	ID	course_id	sec_id	semester	year
0	1	CS-101	1	Fall	2009
1	1	CS-101	2	Spring	2010
2	1	CS-102	1	Spring	2010

18.1.1. Transition tables#

The standard operational semantics of a programming assignment statement $x \leftarrow f(x)$ is to first compute the value $f(x)$ and then assign it to $x$; here $f(x)$ is any expression that depends on $x$.

We wish these semantics apply even when $x$ is a table variable and $f(x)$ is a table expression (SQL statement that evaluates to a table). In database servers, this is accomplished via transition tables.

Each INSERT statement is associated with a transition table, which is the transient collection of tuples to be inserted in the table referenced by the INSERT statement.

The database server first computes the transition table, and then inserts the transition tuples into the referenced table. Servers often implement transition tables using a shadowing technique.

The DELETE and UPDATE SQL statements also have associated transition tables as we will discuss below.

%%isql
SELECT * FROM _teaches;

3 rows affected.

Done.

	ID	course_id	sec_id	semester	year
0	1	CS-101	1	Fall	2009
1	1	CS-101	2	Spring	2010
2	1	CS-102	1	Spring	2010

To append tuples from the result of a subquery, use this variant

%%isql --dialect sqlite
-- # Insert the tuples of teaches into _teaches

INSERT INTO _teaches
  SELECT * FROM _teaches;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql --dialect mysql
-- # Insert the tuples of teaches into _teaches

-- # MySQL does not allow multiple references to a table

INSERT INTO _teaches
  SELECT * FROM _teaches;

(mysql.connector.errors.DatabaseError) 1137 (HY000): Can't reopen table: '_teaches' [SQL: INSERT INTO _teaches SELECT * FROM _teaches;] (Background on this error at: https://sqlalche.me/e/20/4xp6)

%%isql --dialect mysql
-- # Insert the tuples of teaches into _teaches

-- # MySQL does not allow multiple references to a table
-- # a workaround is to use a temporary table

DROP TABLE IF EXISTS _teaches2;
CREATE TEMPORARY TABLE _teaches2 AS SELECT * FROM _teaches;

INSERT INTO _teaches
  SELECT * FROM _teaches2;

DROP TABLE _teaches2;

3 rows affected.

Done.

%%isql
SELECT * FROM _teaches;

6 rows affected.

Done.

	ID	course_id	sec_id	semester	year
0	1	CS-101	1	Fall	2009
1	1	CS-101	2	Spring	2010
2	1	CS-102	1	Spring	2010
3	1	CS-101	1	Fall	2009
4	1	CS-101	2	Spring	2010
5	1	CS-102	1	Spring	2010

18.2. Deleting tuples#

To remove tuples from a table, use the SQL statement

DELETE FROM <table>
[WHERE <selection_predicate>];

Caution: without a WHERE clause all tuples from the table are deleted.

Specify a WHERE clause to delete certain tuples (based on some selection predicate) from a table.

Each DELETE statement has an associated transition table, which consists of the tuples to be deleted. The database server first computes the DELETE’s transition table, and then removes those transition table tuples from the referenced table.

%%isql
-- # Delete rows with a NULL section from _teaches

DELETE FROM _teaches
WHERE sec_id IS NULL;

Done.

%%isql
SELECT * FROM _instructor;

12 rows affected.

Done.

	ID	name	dept_name	salary	zipcode
0	10101	Srinivasan	Comp. Sci.	65000.00	21250
1	12121	Wu	Finance	90000.00	21250
2	15151	Mozart	Music	40000.00	21250
3	22222	Einstein	Physics	95000.00	21250
4	32343	El Said	History	60000.00	21250
5	33456	Gold	Physics	87000.00	21250
6	45565	Katz	Comp. Sci.	75000.00	21250
7	58583	Califieri	History	62000.00	21250
8	76543	Singh	Finance	80000.00	21250
9	76766	Crick	Biology	72000.00	21250
10	83821	Brandt	Comp. Sci.	92000.00	21250
11	98345	Kim	Elec. Eng.	80000.00	21250

%%isql
-- # Delete instructors whose department is 'Finance'

DELETE FROM _instructor
WHERE dept_name = 'Finance';

2 rows affected.

Done.

%isql SELECT * FROM _instructor

10 rows affected.

Done.

	ID	name	dept_name	salary	zipcode
0	10101	Srinivasan	Comp. Sci.	65000.00	21250
1	15151	Mozart	Music	40000.00	21250
2	22222	Einstein	Physics	95000.00	21250
3	32343	El Said	History	60000.00	21250
4	33456	Gold	Physics	87000.00	21250
5	45565	Katz	Comp. Sci.	75000.00	21250
6	58583	Califieri	History	62000.00	21250
7	76766	Crick	Biology	72000.00	21250
8	83821	Brandt	Comp. Sci.	92000.00	21250
9	98345	Kim	Elec. Eng.	80000.00	21250

%isql SELECT AVG(salary) FROM _instructor;

1 rows affected.

Done.

	AVG(salary)
0	72800.000000

%%isql --dialect sqlite
-- # Delete instructors whose salary is less than the average

DELETE FROM _instructor
WHERE salary < (SELECT AVG(salary) FROM _instructor);

-- # MySQL does not allow multiple references to a table
-- # a similar workaround to shown for INSERT could be done to for the DELETE

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%isql SELECT * FROM _instructor

5 rows affected.

Done.

	ID	name	dept_name	salary	zipcode
0	22222	Einstein	Physics	95000.00	21250
1	33456	Gold	Physics	87000.00	21250
2	45565	Katz	Comp. Sci.	75000.00	21250
3	83821	Brandt	Comp. Sci.	92000.00	21250
4	98345	Kim	Elec. Eng.	80000.00	21250

18.3. Updating tuples#

To update some attributes of certain chosen tuples in a table use the SQL statement

UPDATE <table_name>
SET <list_of_attribute_name_=_expression>
[WHERE <selection_predicate>];

If the optional WHERE clause is missing then all of the referenced table’s tuples are updated.

Each UPDATE statement has an associated transition table of the tuples to be updated, and the database server conceptually first computes the UPDATE’s transition table and then updates those transition table tuples in table referenced by the UPDATE statement.

%%isql
-- # Double the salary of instructors with salary above 90K

UPDATE _instructor
SET salary = salary * 2,
    zipcode = '10000'
WHERE salary > 90000;

2 rows affected.

Done.

%%isql --dialect sqlite
-- # Double the salary of instructors with salary above 90K

UPDATE _instructor
    SET salary = salary * 2
WHERE salary < (SELECT AVG(salary) FROM _instructor);

-- # MySQL does not allow multiple references to a table
-- # a similar workaround to shown for INSERT could be done to for the INSERT

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql
SELECT * FROM _instructor;

5 rows affected.

Done.

	ID	name	dept_name	salary	zipcode
0	22222	Einstein	Physics	190000.00	10000
1	33456	Gold	Physics	174000.00	21250
2	45565	Katz	Comp. Sci.	150000.00	21250
3	83821	Brandt	Comp. Sci.	184000.00	10000
4	98345	Kim	Elec. Eng.	160000.00	21250

%%isql
-- # lets undo the last update

UPDATE _instructor
SET salary = salary / 2,
    zipcode = '21250'
WHERE salary > 2*90000;

2 rows affected.

Done.

%%isql
SELECT * FROM _instructor;

5 rows affected.

Done.

	ID	name	dept_name	salary	zipcode
0	22222	Einstein	Physics	95000.00	21250
1	33456	Gold	Physics	174000.00	21250
2	45565	Katz	Comp. Sci.	150000.00	21250
3	83821	Brandt	Comp. Sci.	92000.00	21250
4	98345	Kim	Elec. Eng.	160000.00	21250

19. Indexing to speedup searching tables#

Create an auxiliary data structure that supports finding tuples of a table that satisfy certain search predicates on a table’s attributes

CREATE [UNIQUE] INDEX [IF NOT EXISTS] <index_name> ON <table_name>(<attributes>);
DROP INDEX [IF EXISTS] <index_name>;

If the UNIQUE keyword is used then the index rejects duplicate index entries (index attribute values).

%%isql
# setup table
DROP TABLE IF EXISTS _instructor;
CREATE TABLE _instructor AS SELECT * FROM instructor;
ALTER TABLE _instructor ADD zipcode CHAR(5) DEFAULT '21250';

12 rows affected.

Done.

%%isql --dialect sqlite

DROP INDEX IF EXISTS _instructor_zip_idx;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql --dialect mysql
-- # MySQL does not support DROP INDEX IF EXISTS
-- DROP INDEX IF EXISTS _instructor_zip_idx ON _instructor;
-- DROP INDEX _instructor_zip_idx ON _instructor;
SELECT NULL;

1 rows affected.

Done.

	NULL
0	None

%%isql
-- # create a index on the attribute 'zipcode' of '_instructor'

CREATE INDEX _instructor_zip_idx ON _instructor(zipcode);

Done.

19.1. Cost-benefit of an index affects its usefulness#

Each one of indexes on a table is kept in sync as tuples in the indexed table are modified. The extra (storage and time) costs of maintaining an index in the face of modifications should in general be compensated by the performance benefits in evaluating SQL statements involving the indexed table.

To see if an index is used in evaluating a SQL statement, use the SQL EXPLAIN QUERY PLAN statement.

%%isql --dialect sqlite
-- # Examine a query plan to find out
-- # whether an index is useful to the server in executing a SQL statement
EXPLAIN QUERY PLAN
    SELECT name FROM _instructor WHERE zipcode = '21250' ORDER BY name;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

plan = None

%%isql --dialect mysql --return-result plan

EXPLAIN ANALYZE
        SELECT name FROM _instructor WHERE zipcode = '21250' ORDER BY name;

1 rows affected.

Done.

if isinstance(plan, pd.DataFrame):
    for line in plan.loc[0]['EXPLAIN'].split('->'):
        print(line)

 Sort: _instructor.`name`  (cost=1.45 rows=12) (actual time=0.033..0.034 rows=12 loops=1)

 Filter: (_instructor.zipcode = '21250')  (cost=1.45 rows=12) (actual time=0.012..0.020 rows=12 loops=1)

 Table scan on _instructor  (cost=1.45 rows=12) (actual time=0.010..0.017 rows=12 loops=1)

%isql --dialect mysql DROP INDEX _instructor_zip_idx ON _instructor;

Done.

20. Fulltext queries#

Some SQL servers (e.g. MySQL) support natural language and boolean full text searching on text-like attributes (e.g. VARCHAR, TEXT, etc).

To have the database server evaluate full-text search queries on a group of text-like attributes, there should be a FULLTEXT index on that group of attributes.

The concatenation of the values of that group for attribute for each input tuple is considered the tuple’s “document”.

%%isql --dialect mysql
# lets setup a persistent base table _course table to play with

DROP TABLE IF EXISTS _course;
# DROP TABLE _course;
CREATE TABLE IF NOT EXISTS _course AS SELECT * FROM course

13 rows affected.

Done.

%%isql --dialect mysql
# SELECT NULL;
# ALTER TABLE _course DROP COLUMN syllabus;
# ALTER TABLE _course ADD COLUMN syllabus TEXT DEFAULT 'everybody SQLs;
SELECT * FROM _course LIMIT 1;

1 rows affected.

Done.

	course_id	title	dept_name	credits
0	BIO-101	Intro. to Biology	Biology	4

%%isql --dialect mysql-skip
DROP INDEX IF EXISTS course_nlp_idx ON _course;

current connection dialect 'mysql' differs from target dialect 'mysql-skip'. Ignoring sql.

Done.

%%isql --dialect mysql
-- # Add a new TEXT column to _courses

ALTER TABLE _course ADD COLUMN syllabus VARCHAR(256)  DEFAULT 'all about SQL';

Done.

%%isql --dialect mysql
-- # Create a FULLTEXT index for natural languange and boolean full-text searches on
-- # the title and syllabus attributes (together

CREATE FULLTEXT INDEX course_nlp_idx ON _course(title, syllabus);

-- ALTER TABLE _course ADD FULLTEXT INDEX course_nlp_idx(title, syllabus);

Done.

We can then search the fulltext indexed group of attributes in three modes, using the MATCH function

MATCH(<attributes) AGAINST (<search_phrase> [<search_mode>])
<search_mode> :: IN NATURAL LANGUAGE MODE |
                 [IN NATURAL LANGUAGE MODE] WITH QUERY EXPANSION |
                 IN BOOLEAN MODE

which returns the relevance score of a tuple’s document (text in the group of referenced attributes of a tuple), where the relevance scores

are non-negative numbers
are computed based on word statistics (eg word counts) of a document, word statistics of the collection of all documents, as well as word statistics of documents conditioned on containing a word.

MySQL uses a variant of the TF-IDF relevance scoring method.

a relevance score value 0 indicates no relevance.

By default, the tuples in the result table are in decreasing sorted order of the relevance score of their documents.

%%isql --dialect mysql
-- # full-text query for 'databases' in the title+syllabus text document of _course tuples

SELECT *
FROM _course
WHERE MATCH (title, syllabus) AGAINST ('database' IN NATURAL LANGUAGE MODE);

1 rows affected.

Done.

	course_id	title	dept_name	credits	syllabus
0	CS-347	Database System Concepts	Comp. Sci.	3	all about SQL

%%isql --dialect mysql
-- # Find course id, title, syllabus and relevance scores
-- # for courses with database in their title or syllabus
-- # as natural language

SELECT course_id, title, syllabus,
       MATCH (title, syllabus) AGAINST ('database' IN NATURAL LANGUAGE MODE) AS score
FROM _course
WHERE MATCH (title, syllabus) AGAINST ('database' IN NATURAL LANGUAGE MODE);

1 rows affected.

Done.

	course_id	title	syllabus	score
0	CS-347	Database System Concepts	all about SQL	1.24087

MySQL uses the blind query expansion technique: perform the search twice, where the second search’s phrase is the original search phrase concatenated with the few most highly relevant documents from the 1st search.

%%isql --dialect mysql
-- # Search in natural language mode after query expansion of search expression

SELECT *
FROM _course
WHERE MATCH (title, syllabus) AGAINST ('database' WITH QUERY EXPANSION);

13 rows affected.

Done.

	course_id	title	dept_name	credits	syllabus
0	CS-347	Database System Concepts	Comp. Sci.	3	all about SQL
1	BIO-101	Intro. to Biology	Biology	4	all about SQL
2	BIO-301	Genetics	Biology	4	all about SQL
3	BIO-399	Computational Biology	Biology	3	all about SQL
4	CS-101	Intro. to Computer Science	Comp. Sci.	4	all about SQL
5	CS-190	Game Design	Comp. Sci.	4	all about SQL
6	CS-315	Robotics	Comp. Sci.	3	all about SQL
7	CS-319	Image Processing	Comp. Sci.	3	all about SQL
8	EE-181	Intro. to Digital Systems	Elec. Eng.	3	all about SQL
9	FIN-201	Investment Banking	Finance	3	all about SQL
10	HIS-351	World History	History	3	all about SQL
11	MU-199	Music Video Production	Music	3	all about SQL
12	PHY-101	Physical Principles	Physics	4	all about SQL

MySQL also supports boolean full-text queries

%%isql --dialect mysql
-- # Implied Boolean logic where "+- " indicate AND, NOT, OR,
-- # eg "+term1 -term2 term3 term4" to find docs that must have term1,
-- # must not have term2, and have an of term3 or term4 with
-- # doc relevance increasing as more terms are contained in it

SELECT *
FROM _course
WHERE MATCH (title, syllabus) AGAINST ('+SQL -NoSQL' IN BOOLEAN MODE);

13 rows affected.

Done.

	course_id	title	dept_name	credits	syllabus
0	BIO-101	Intro. to Biology	Biology	4	all about SQL
1	BIO-301	Genetics	Biology	4	all about SQL
2	BIO-399	Computational Biology	Biology	3	all about SQL
3	CS-101	Intro. to Computer Science	Comp. Sci.	4	all about SQL
4	CS-190	Game Design	Comp. Sci.	4	all about SQL
5	CS-315	Robotics	Comp. Sci.	3	all about SQL
6	CS-319	Image Processing	Comp. Sci.	3	all about SQL
7	CS-347	Database System Concepts	Comp. Sci.	3	all about SQL
8	EE-181	Intro. to Digital Systems	Elec. Eng.	3	all about SQL
9	FIN-201	Investment Banking	Finance	3	all about SQL
10	HIS-351	World History	History	3	all about SQL
11	MU-199	Music Video Production	Music	3	all about SQL
12	PHY-101	Physical Principles	Physics	4	all about SQL

%%isql --dialect mysql
# lets clean up

DROP TABLE IF EXISTS _course;

Done.

21. Virtual tables#

A virtual table is an interface to an object external to the database that appears to behave like a table (i.e. has a ordered collection of columns and an unordered collection of rows).

In principle, we can do anything with a virtual table that can be done with a base table, except that we cannot create indices or triggers on it.

Virtual tables are useful in accessing data files external to database server without replicating them in the server.

SQLite supports virtual tables (when build with appropriate flags):

%%isql --dialect sqlite-with-csv
-- # requires the csv module as a loadable extension module in sqlite

CREATE VIRTUAL TABLE sales USING csv(filename='./sales.csv');
SELECT * FROM sales;
DROP TABLE IF EXISTS sales;

current connection dialect 'mysql' differs from target dialect 'sqlite-with-csv'. Ignoring sql.

Done.

%%isql --dialect sqlite-csv
-- # requires the csv module as a loadable extension module in sqlite
select load_extension('csv');

CREATE VIRTUAL TABLE sales USING csv(filename='./sales.csv');
SELECT * FROM sales;
DROP TABLE IF EXISTS sales;

current connection dialect 'mysql' differs from target dialect 'sqlite-csv'. Ignoring sql.

Done.

22. Catalogs and schemas#

The namespace of all database objects, such as tables, views, indexes etc, is organized hierarchically, similar to the directories of filesystems: eg., the namespace is partitioned into catalogs, and each catalog is further partitioned into schemas. We refer to a particular object as

<catalog_name>.<schema_name>.<object_name>

Often current default values are set for catalog and schema names, eg. by using a statement

USE <db_name>;

to set the default database schema name in MySQL.

Catalog and schema management statements are highly dependent on the particular database system vendor.

See the SQL statements in the metainfo (python) support methods for examples.

23. Recursive tables in SQL#

By exploiting a natural duality between induction and recursion, we can define recursive SQL tables.

Consider a table $R_i$ defined inductively using a Common Table Expression (CTE), e.g.

\[ R_{i+1} \ \textbf{AS}\ f(R_i)\]

where $f$ is a query (function) that depends on $R_i$.

Under some conditions, as $i \to \infty$, the table $R_i$ converges to a finite table value at some finite inductive step $k$, so that the converged table value is a fixed point $R_{k+1} = R_{k}$. This converged fixed-point table value is taken as the solution of the recursive table equation

\[R = f(R)\]

A recursive CTE defines such tables $R$ via

RECURSIVE <table_R>(<attributes>) AS <SQL_query_referencing_table_R>

Frequently, we are interested in working with the transitive closure of a binary relation $X$ (e.g. a 2-attribute projection of a table) as in the example below

recall that the transitive closure of $X$ is the minimal binary relation that is transitive and contains $X$

%%isql
-- # fisrt, let's create a table to play with

DROP TABLE IF EXISTS _prereq;
CREATE TABLE _prereq AS SELECT * FROM prereq;
SELECT * FROM _prereq;

7 rows affected.

Done.

	course_id	prereq_id
0	BIO-301	BIO-101
1	BIO-399	BIO-101
2	CS-190	CS-101
3	CS-315	CS-101
4	CS-319	CS-101
5	CS-347	CS-101
6	EE-181	PHY-101

%%isql
-- # Find all the direct and indirect prerequisites of each course, ie the closure of prerequisites

WITH RECURSIVE
  prereq_closure(course_id, prereq_id) AS (
      SELECT course_id, prereq_id FROM _prereq
                      UNION
      SELECT prereq_closure.course_id, _prereq.prereq_id
      FROM _prereq, prereq_closure
      WHERE prereq_closure.prereq_id = _prereq.course_id)
SELECT * FROM prereq_closure;

7 rows affected.

Done.

	course_id	prereq_id
0	BIO-301	BIO-101
1	BIO-399	BIO-101
2	CS-190	CS-101
3	CS-315	CS-101
4	CS-319	CS-101
5	CS-347	CS-101
6	EE-181	PHY-101

%%isql
-- # add some tuples and then recompute the closure of _prereq

INSERT INTO _prereq VALUES('BIO-101', 'CS-319');
INSERT INTO _prereq VALUES('CS-319', 'CS-315');

1 rows affected.

Done.

%%isql
-- # Create a view for the _prereq transitive closure

DROP VIEW IF EXISTS prereq_closure_view;

CREATE VIEW prereq_closure_view AS
WITH RECURSIVE
  prereq_closure(course_id, prereq_id) AS (
      SELECT course_id, prereq_id FROM _prereq
                      UNION
      SELECT prereq_closure.course_id, _prereq.prereq_id
      FROM _prereq, prereq_closure
      WHERE prereq_closure.prereq_id = _prereq.course_id)
SELECT * FROM prereq_closure;

-- # query the view
SELECT * FROM prereq_closure_view;

17 rows affected.

Done.

	course_id	prereq_id
0	BIO-301	BIO-101
1	BIO-399	BIO-101
2	CS-190	CS-101
3	CS-315	CS-101
4	CS-319	CS-101
5	CS-347	CS-101
6	EE-181	PHY-101
7	BIO-101	CS-319
8	CS-319	CS-315
9	BIO-101	CS-101
10	BIO-399	CS-319
11	BIO-301	CS-319
12	BIO-101	CS-315
13	BIO-301	CS-101
14	BIO-399	CS-101
15	BIO-301	CS-315
16	BIO-399	CS-315

%%isql
-- # finaly, clean up

DROP TABLE IF EXISTS _prereq;
DROP VIEW IF EXISTS prereq_closure_view;

Done.

24. OLAP queries#

Online Analytical Processing (OLAP) is mainly concerned with the interactive computation of sophisticated statistical summaries of multidimensional data.

24.1. Rollup#

A rollup aggregation generalizes ordinary group-by aggregation by reporting group-by aggregates for all prefixes of the sequence of group-by attributes

GROUP BY <grouping_attributes> WITH ROLLUP

Rollup aggregations are often used for aggregations at multiple granularity levels (eg the sequence of group-by attributes is sorted in increasing granularity level, so that partitions at finer granularity are refinements of those of coarser granularity).

%%isql --dialect mysql
-- # Find the number of students taken courses by department-year-semester
-- # hierarchical granularity levels

SELECT dept_name, year, COALESCE(semester, 'ALL'), COUNT(DISTINCT id) AS no_students
FROM takes NATURAL INNER JOIN course
GROUP BY dept_name, year, semester
WITH ROLLUP;

27 rows affected.

Done.

	dept_name	year	COALESCE(semester, 'ALL')	no_students
0	Biology	2009	Summer	1
1	Biology	2009	ALL	1
2	Biology	2010	Summer	1
3	Biology	2010	ALL	1
4	Biology	None	ALL	1
5	Comp. Sci.	2009	Fall	6
6	Comp. Sci.	2009	Spring	2
7	Comp. Sci.	2009	ALL	6
8	Comp. Sci.	2010	Spring	4
9	Comp. Sci.	2010	ALL	4
10	Comp. Sci.	None	ALL	6
11	Elec. Eng.	2009	Spring	1
12	Elec. Eng.	2009	ALL	1
13	Elec. Eng.	None	ALL	1
14	Finance	2010	Spring	1
15	Finance	2010	ALL	1
16	Finance	None	ALL	1
17	History	2010	Spring	1
18	History	2010	ALL	1
19	History	None	ALL	1
20	Music	2010	Spring	1
21	Music	2010	ALL	1
22	Music	None	ALL	1
23	Physics	2009	Fall	1
24	Physics	2009	ALL	1
25	Physics	None	ALL	1
26	None	None	ALL	12

24.2. Pivot tables#

We often seek to construct statistical summaries of multidimensional data.

Multidimensional data

have tuples that represent observable properties of entities
measure attributes representing numerical characteristics of entities that can be aggregated (avg, sum, etc)
dimension attributes representing qualitative (enumerated) properties of entities, and used for partitioning the entities into groups

Traditionally, the table containing these multidimensional data is called a facts table.

A pivot table (or cross-tab table) is a tabular 2D grid (i.e. table) whose

axes have coordinates labeled by the values of dimension attributes
- axes may include a don’t-care coordinate label (eg. *, ANY, NULL) that matches any value
cells contain aggregate values of the facts tuples with dimension attributes matching the labels of the cell’s axes coordinates

A cube table generalizes a pivot table to higher dimensional tabular grids that, for each dimension facts attribute, have an axis labeled with the values of that facts dimension attribute.

Hierarchies on dimension attributes describe their values at multiple granularity levels.

For the example table sales(item_name, color, clothes_size, quantity),

the example pivot table query

SELECT *
FROM sales
    PIVOT(SUM(quantity)
          FOR color IN (’dark’, ’pastel’, ’white’))
ORDER BY item name;

computes the pivot table

24.2.1. Cross-tabulation (pivot tables) using pandas DataFrames#

# Decide what attributes to extract from a (facts) table for the cross-tabulation (pivot table)
# We will designate some of the attributes as `rownames`, `colnames`, and `valnames`
# attributes in `valnames` are to be aggregates from a group by attributes in `rownames`+`colnames`
# The `valnames` are the elements of the `valexprs` [] sine we will use the database server to aggregate
# the data

# the facts relation for the examples below is
facts_table = 'takes NATURAL INNER JOIN course'

rownames = ['year', 'semester', ]
colnames = ['dept_name', 'grade', ]
valexprs = ['COUNT(ID)', 'COUNT(DISTINCT id)']
#valexprs = [('n_takers', 'COUNT(id)'), ('n_students', 'COUNT(DISTINCT id)')]

24.2.1.1. example: single attributes#

cross-tabulation using single attributes for the rows, columns, and cell values and without margins

cross_tab_emulation(facts_table, rownames[:1], colnames[:1], valexprs[:1])

9 rows affected.

Done.

	COUNT(ID)
dept_name	Biology	Comp. Sci.	Elec. Eng.	Finance	History	Music	Physics
year
2009	1.0	10.0	1.0				1.0
2010	1.0	5.0		1.0	1.0	1.0

24.2.1.2. example: multiple attributes#

cross-tabulation using multiple attributes for the rows, columns, and cell values and with margins

cross_tab_emulation(facts_table, rownames, colnames, valexprs, margins=True)

17 rows affected.

Done.

		COUNT(DISTINCT id)														COUNT(ID)
	dept_name	Biology	Comp. Sci.							Elec. Eng.	Finance	History	Music	Physics	All	Biology	Comp. Sci.							Elec. Eng.	Finance	History	Music	Physics	All
	grade	A	A	A-	B	B+	C	C-	F	C	C+	B	A-	B-		A	A	A-	B	B+	C	C-	F	C	C+	B	A-	B-
year	semester
2009	Fall		3.0	2.0			1.0	1.0	1.0					1.0	9		3.0	2.0			1.0	1.0	1.0					1.0	9
	Spring		1.0			1.0				1.0					3		1.0			1.0				1.0					3
	Summer	1.0													1	1.0													1
2010	Spring		2.0		2.0	1.0					1.0	1.0	1.0		8		2.0		2.0	1.0					1.0	1.0	1.0		8
All		1.0	6.0	2.0	2.0	2.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	21	1.0	6.0	2.0	2.0	2.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	21

24.2.1.3. example: with a table stored in a CSV file#

For this example, we use the sales relation (table) shown in Fig 5.16 of DSC.

# load a dataframe from a CSV file
sales = pd.read_csv('sales.csv')

# display(sales.head())

# cross-tabulation using the in memory sales DataFrame
rownames, colnames, valnames = ['item_name', 'clothes_size'], ['color',], 'quantity'
to_crosstab(sales, rownames=rownames, colnames=colnames, valnames=valnames, margins=True)

		quantity
	color	dark	pastel	white	All
item_name	clothes_size
dress	large	12	3	0	15
	medium	6	3	3	12
	small	2	4	2	8
pants	large	0	1	2	3
	medium	6	0	0	6
	small	14	1	3	18
shirt	large	6	2	10	18
	medium	6	1	1	8
	small	2	4	17	23
skirt	large	1	15	3	19
	medium	5	9	5	19
	small	2	11	2	15
All		62	54	48	164

# persist the sales DataFrame as a table in the database
#
%isql DROP TABLE IF EXISTS sales2;
# %isql --persist sales
%isql --xpersist sales --pmode R --index-label idx --no-index --tablename sales

%isql SELECT * FROM sales LIMIT 5;

Done.

persisted dataframe 'sales' to SQL table 'sales' in mode 'replace' and affected 36 rows.'

Done.

5 rows affected.

Done.

	item_name	color	clothes_size	quantity
0	skirt	dark	small	2
1	skirt	dark	medium	5
2	skirt	dark	large	1
3	skirt	pastel	small	11
4	skirt	pastel	medium	9

metainfo2('sales')

Done.

Metadata for table 'sales':
Columns

	name	type	nullable	default	autoincrement	primary_key	unique	index	computed	comment
0	item_name	TEXT	True	None	auto	False	None	None	None	None
1	color	TEXT	True	None	auto	False	None	None	None	None
2	clothes_size	TEXT	True	None	auto	False	None	None	None	None
3	quantity	BIGINT	True	None	False	False	None	None	None	None

primary key constraints:

	name	constrained_columns
0	None	[]

# cross-tabulation of the  sales table which was persisted in the database server

rownames, colnames, valexprs, facts_table = ['item_name',], ['color',], 'quantity', 'sales'

cross_tab_emulation(facts_table, rownames, colnames, valexprs, margins=True)

12 rows affected.

Done.

	quantity
color	dark	pastel	white	All
item_name
dress	2	4	2	8
pants	14	1	3	18
shirt	2	4	17	23
skirt	2	11	2	15
All	20	20	24	64

# clean up
%isql DROP TABLE IF EXISTS sales;

Done.

24.3. Data cubes#

For the same sales relation,

SELECT item_name, color, clothes_size, SUM(quantity)
FROM sales
GROUP BY CUBE(item_name, color, clothes_size);

computes the data cube below

25. Window Aggregations#

25.1. Windowing concepts#

Window functions operate on a table by performing for each tuple $t$ in the table the following

identifying a sequence of tuples that are related to the current tuple
- this sequence of tuples is called the current tuple’s window partition and is specified by a window specification clause
identifying a subsequence of tuples from the current window (partition) relative to the current tuple
- this subsequence of tuples is called the current tuple’s window frame and is specified by a window frame extent clause
evaluate the aggregate function on the window frame of the current tuple to produce an output tuple

First, lets define the pre-window result of a SQL query to be the result of the query modified by removing from it

any references that depend on window functions
any final sorting, duplicate tuple elimination, or limit processing.

A window function is a function from below that is followed by an OVER clause

an ordinary aggregate SQL function (e.g. AVG, SUM, etc)
a scalar function
an aggregate SQL function, like RANK and NTILE, with a mandatory OVER clause,

A window function

might also have a FILTER clause between its function call and its OVER clause
might appear only in the SELECT or ORDER BY clauses of a SQL query
admits only the pre-windowing result tuples that satisfy the predicate of its FILTER clause (if any)
produces an output tuple for each tuple in its admitted pre-windowing result using the window specification in the OVER clause

The OVER clause of a window function

has a window specification that determines a collection of tuples from the admitted pre-windowing result that are used in evaluating the window function
might refer to the window specification of a window clause, which might only appear between the (optional) HAVING and ORDER BY clauses of the SQL query.

The window specification might have

a PARTITION BY clause to group-by the admitted pre-windowing result table into partitions called window partitions
an ORDER BY clause for sorting the tuples in each one of the window partitions
the window sorting attribute is defined as the attribute in an ORDER BY with a single attribute clause
tuples tied in this sorting are called window peers.
the window peer position of a tuple is the number of maximal groups of peers in its window partition that precede it in the sorting order
a frame extent clause which, given a current tuple in a window partition, specifies
- a window frame extent (interval) in ROW units (window peer positions) or RANGE units (relative deviation from the current tuple on the window sorting attribute)
- a window frame that consists of the tuples in the current window partition whose peer position or sorting attribute is in the window frame extent (depending on frame extent units)

A window function is evaluated on the window frame of each tuple in the admitted pre-windowing result.

After evaluating all expressions that involve window functions, any remaining sorting, duplicate elimination, and limiting processing of the SQL query are carried out to obtain the query’s final result.

<window_function> :: <aggregate_function>(<args>) [<window_filter>] <over_clause>
<window_filter> :: FILTER (WHERE <boolean_predicate>)
<over_clause> :: OVER(<window_spec>) | OVER <window_name>
<window_clause> :: WINDOW <window_name> AS (<window_spec>)
<window_spec> :: [PARTITION BY <group_by_expr>] [ORDER BY <order_by_expr>] [<frame_extent>]
<frame_extent> :: <frame_units> <frame_interval_spec> [EXCLUDE <exclude_clause>]
<frame_units> :: ROWS | RANGE
<frame_interval-spec>: BETWEEN <frame_boundary> [ AND <frame_boundary> ] | <frame_boundary>
<frame_boundary> :: CURRENT ROW | UNBOUNDED PRECEDING | UNBOUNDED FOLLOWING | <expr> PRECEDING | <expr> FOLLOWING
<exlude_clause> :: NO OTHERS | CURRENT ROW | GROUP | TIES

25.2. Tables and views used in the windowing examples#

The windowing example queries utilize the following two VIEWS

tot_credits(id, year, num_credits) for the total number of credits a student takes in a year
student_grades(id, gpa) for the GPA of a student for the courses the student has taken

The implementation of these two VIEWS is left as an exercise.

%%isql
SELECT * FROM tot_credits ORDER BY id, year;

17 rows affected.

Done.

	id	year	num_credits
0	00128	2009	7
1	12345	2009	11
2	12345	2010	3
3	19991	2010	3
4	23121	2010	3
5	44553	2009	4
6	45678	2009	4
7	45678	2010	7
8	54321	2009	8
9	55739	2010	3
10	76543	2009	4
11	76543	2010	3
12	76653	2009	3
13	98765	2009	4
14	98765	2010	3
15	98988	2009	4
16	98988	2010	4

%%isql
SELECT * FROM student_grades;

12 rows affected.

Done.

	id	gpa
0	00128	3.835000
1	12345	3.500000
2	19991	3.000000
3	23121	2.330000
4	44553	2.670000
5	45678	2.110000
6	54321	3.500000
7	55739	3.670000
8	76543	4.000000
9	76653	2.000000
10	98765	2.335000
11	98988	2.000000

25.3. Ranking#

Ranking is a scale-agnostic data transformation: given a list of values, replace each value by it’s position in a sorting of that list, eg the list values

\[10, 30, 200, 1000, 2500\]

is rank transformed (each value is replaced by its position in an non-decreasing sorting of these values) to

\[1, 2, 3, 4, 5\]

# the group_concat function some systems support aggregates are handy to dissect windows
# group_concat(id, '.')
# group_concat(id || '@' || year, '.')

# SQLite supports `group_concat()` while MySQL does not

Let’s use a windowing function over a window specification that

uses a single window partition for all admitted pre-windowing result tuples
sorts them by decreasing a single attribute

%%isql
-- # Find the global GPA rank of each student, together with their id and gpa

SELECT id, gpa,
    RANK()
        OVER(ORDER BY GPA DESC) AS rank_gpa
FROM student_grades;

12 rows affected.

Done.

	id	gpa	rank_gpa
0	76543	4.000000	1
1	00128	3.835000	2
2	55739	3.670000	3
3	12345	3.500000	4
4	54321	3.500000	4
5	19991	3.000000	6
6	44553	2.670000	7
7	98765	2.335000	8
8	23121	2.330000	9
9	45678	2.110000	10
10	76653	2.000000	11
11	98988	2.000000	11

Rank transform over a single window partition that contains the whole admitted pre-windowing result.

Let’s refine the window partitions using the PARTITION BY clause in the window specification

%%isql
-- # Find the by-department GPA rank of each student

SELECT id, dept_name,
       RANK()
          OVER(PARTITION BY dept_name ORDER BY gpa DESC) AS dept_rank_gpa
FROM student_grades NATURAL INNER JOIN student;

12 rows affected.

Done.

	id	dept_name	dept_rank_gpa
0	98988	Biology	1
1	76543	Comp. Sci.	1
2	00128	Comp. Sci.	2
3	12345	Comp. Sci.	3
4	54321	Comp. Sci.	3
5	98765	Elec. Eng.	1
6	76653	Elec. Eng.	2
7	23121	Finance	1
8	19991	History	1
9	55739	Music	1
10	44553	Physics	1
11	45678	Physics	2

Lets share window specifications among window function calls using a named window clause.

%%isql
-- # Find the by-department GPA rank and percentile rank of each student

SELECT id, dept_name,
       RANK() OVER dept_window AS dept_rank_gpa,
       PERCENT_RANK() OVER dept_window AS pct_dept_rank_gpa
FROM student_grades NATURAL INNER JOIN student
    WINDOW dept_window AS (PARTITION BY dept_name ORDER BY gpa DESC);

12 rows affected.

Done.

	id	dept_name	dept_rank_gpa	pct_dept_rank_gpa
0	98988	Biology	1	0.000000
1	76543	Comp. Sci.	1	0.000000
2	00128	Comp. Sci.	2	0.333333
3	12345	Comp. Sci.	3	0.666667
4	54321	Comp. Sci.	3	0.666667
5	98765	Elec. Eng.	1	0.000000
6	76653	Elec. Eng.	2	1.000000
7	23121	Finance	1	0.000000
8	19991	History	1	0.000000
9	55739	Music	1	0.000000
10	44553	Physics	1	0.000000
11	45678	Physics	2	1.000000

%%isql
-- # Distribute the admitted pre-windowing result tuples in equal-size buckets
-- # and return the each tuple's bucket index (eg equal-height histograms)

SELECT id, gpa,
       NTILE(4)
           OVER(ORDER BY gpa DESC) AS quartile
FROM student_grades;

12 rows affected.

Done.

	id	gpa	quartile
0	76543	4.000000	1
1	00128	3.835000	1
2	55739	3.670000	1
3	12345	3.500000	2
4	54321	3.500000	2
5	19991	3.000000	2
6	44553	2.670000	3
7	98765	2.335000	3
8	23121	2.330000	3
9	45678	2.110000	4
10	76653	2.000000	4
11	98988	2.000000	4

25.4. Window frames for rolling aggregations#

Windowing frames are useful for computing rolling-window aggregation, eg for 30-day moving average of daily sales

use sales date as window sorting attribute, and
use window frame of each current tuple which contains all tuples in the current window partition whose peer position is in window frame extent [p-29, p], where p is the peer position of current tuple

%%isql --dialect sqlite|mysql
-- # Find, a 4-point moving average of total credits for each student-year
-- # using the 3 preceding result tuples upon sorting them by year as window frame

-- # MySQL does not support group_concat() as a window function

SELECT id, year,
       AVG(num_credits)
       -- group_concat(id || '@' || year, '  ')
          OVER(ORDER BY year ROWS 3 PRECEDING)
             AS avg_total_credits
FROM tot_credits;

17 rows affected.

Done.

	id	year	avg_total_credits
0	98988	2009	4.0000
1	00128	2009	5.5000
2	12345	2009	7.3333
3	45678	2009	6.5000
4	54321	2009	7.5000
5	76543	2009	6.7500
6	98765	2009	5.0000
7	76653	2009	4.7500
8	44553	2009	3.7500
9	98988	2010	3.7500
10	45678	2010	4.5000
11	12345	2010	4.5000
12	98765	2010	4.2500
13	76543	2010	4.0000
14	23121	2010	3.0000
15	19991	2010	3.0000
16	55739	2010	3.0000

When only one boundary of the window frame extent is specified, the other boundary defaults to the current tuples peer position or value (depending on the frame units)

%%isql
-- # computing moving average over all prior years

SELECT id, year,
      AVG(num_credits)
        OVER (ORDER BY year ROWS UNBOUNDED PRECEDING)
           AS avg_total_credits
FROM tot_credits;

17 rows affected.

Done.

	id	year	avg_total_credits
0	98988	2009	4.0000
1	00128	2009	5.5000
2	12345	2009	7.3333
3	45678	2009	6.5000
4	54321	2009	6.8000
5	76543	2009	6.3333
6	98765	2009	6.0000
7	76653	2009	5.6250
8	44553	2009	5.4444
9	98988	2010	5.3000
10	45678	2010	5.4545
11	12345	2010	5.2500
12	98765	2010	5.0769
13	76543	2010	4.9286
14	23121	2010	4.8000
15	19991	2010	4.6875
16	55739	2010	4.5882

%%isql
-- # Find, for each student-year, the average total credits of tuples by
-- # 3-point central-moving averaging on year, ie
-- # average(t.num_credits : t.year in [curr.year-1, curr.year+1] and t in curr's window partition

SELECT id, year,
       AVG(num_credits)
            OVER(ORDER BY year RANGE BETWEEN 1 PRECEDING AND 1 FOLLOWING)
                AS avg_total_credits
FROM tot_credits;

17 rows affected.

Done.

	id	year	avg_total_credits
0	98988	2009	4.5882
1	00128	2009	4.5882
2	12345	2009	4.5882
3	45678	2009	4.5882
4	54321	2009	4.5882
5	76543	2009	4.5882
6	98765	2009	4.5882
7	76653	2009	4.5882
8	44553	2009	4.5882
9	98988	2010	4.5882
10	45678	2010	4.5882
11	12345	2010	4.5882
12	98765	2010	4.5882
13	76543	2010	4.5882
14	23121	2010	4.5882
15	19991	2010	4.5882
16	55739	2010	4.5882

25.5. Notes on window functions#

Additional window functions include:

FIRST_VALUE()
LAST_VALUE()
NTH_VALUE(expr, offset)
LAG(<expr>, offset=1, default=NULL)
LEAD(<expr>, offset=1, default=NULL)

Some aggregate window functions

ignore window ranges and get evaluated on the entire window partition, eg RANK, NTILE, LAG, LEAD, etc.
expect ROWS as frame units, eg FIRST_VALUE, LAST_VALUE, NTH_VALUE

26. Transactions#

A database processor may perform numerous operations/instructions in order to execute a single SQL statement. While doing so, an error condition could cause a statement failure or even a system crash. Without proper safeguards, such failures would be catastrophic since they could corrupt the database. Moreover, concurrently executing SQL statements may lead, among other problems, to race conditions, with the potential to also corrupt the database.

Database servers expend enormous effort to ensure the databases they manage are not corrupted. The notion of atomicity is critical for achieving that goal.

A block (i.e., a sequence) of database processor operations is atomic if either all or none of them are executed to completion and their effects are reflected in the database, despite of any intervening failures prior to the latest recovery.

All SQL statements, except certain SQL control and transaction statements, are atomic, i.e. their execution is atomic with respect to recovery. If the execution of an atomic SQL statement is unsuccessful, then any changes to the database it might have made are canceled (undone).

A block (i.e., a sequence of executions) of SQL statements that has the following (ACID) properties

Atomic
Consistent
Isolation
Durability

is called an ACID transaction* or simply transaction.

Transactions slide-deck at the class website

A SQL transaction is a sequence of executions of SQL statements that is atomic with respect to recovery and has

a constraint mode for each integrity constraint.
an access mode that is either read-only or read-write.
an isolation level with respect to other concurrent transactions, that is READ UNCOMMITTED, READ COMMITTED, REPEATABLE READ, or SERIALIZABLE.

Transactions initiated by different agents that access the same database objects and their executions overlap in time are called concurrent transactions.

The isolation level of a transaction defines the degree to which the operations of a transaction on the database are affected by the effects of or can affect the operations on the database in other concurrent transactions.

The execution of concurrent transactions at isolation level SERIALIZABLE is guaranteed to be serializable. A serializable execution is an execution of the operations of concurrently executing transactions that produces the same effect as some serial execution of those same transactions. A serial execution is one in which each transaction executes to completion before the next transaction begins.

A transaction has an initial implicit SAVEPOINT (checkpoint for recovery) and may

establish explicit savepoints during its execution
partially ROLLBACK (cancel) its changes upto an already established savepoint
request to COMMIT its changes to the persistent database state
rollback to its initial implicit savepoint (cancel all its changes, frequently called ABORT)

A transaction is defined by

BEGIN TRANSACTION;
<sequence_of_SQL_statements>
COMMIT;

or

BEGIN TRANSACTION;
<sequence_of_SQL_statements>
ROLLBACK;

A transaction establishes named savepoints, rollbacks to a savepoint, and discards savepoints with the SQL statements

SAVEPOINT <savepoint_name>;
ROLLBACK TO [SAVEPOINT] <savepoint_name>;
RELEASE [SAVEPOINT> <savepoint_name>;

Transactions often include control-flow statements (beyond the scope of this review).

26.1. transaction examples#

%%isql --dialect mysql
-- sample table to demo transactions
DROP TABLE IF EXISTS _tmp;
CREATE TABLE _tmp AS SELECT * FROM instructor;
SELECT * FROM _tmp LIMIT 1;

12 rows affected.

1 rows affected.

Done.

	ID	name	dept_name	salary
0	10101	Srinivasan	Comp. Sci.	65000.00

%%isql --dialect mysql
# SET autocommit=0;
SET SESSION TRANSACTION ISOLATION LEVEL SERIALIZABLE;

Done.

26.1.1. failure example#

transaction spans multiple cells and eventually aborts

%%isql --dialect mysql

START TRANSACTION;
DELETE FROM _tmp;
SELECT * FROM _tmp

12 rows affected.

Done.

	ID	name	dept_name	salary

%%isql --dialect mysql
ROLLBACK;

SELECT * FROM _tmp LIMIT 1;
-- tuples did not get deleted

1 rows affected.

Done.

	ID	name	dept_name	salary
0	10101	Srinivasan	Comp. Sci.	65000.00

26.1.2. committed example#

%%isql --dialect mysql

START TRANSACTION;
DELETE FROM _tmp;
COMMIT;

SELECT * FROM _tmp LIMIT 1;
-- tuples are indeed deleted

12 rows affected.

Done.

	ID	name	dept_name	salary

# cleanup
%isql --dialect mysql DROP TABLE IF EXISTS _tmp;

Done.

27. Triggers#

Triggers provide an event-condition-action mechanism that facilitates the database system reacting to events happening in a database :

the database server takes certain action provided a certain condition is satisfied once an event occurs in the server

A trigger is defined on a persistent base table, the trigger’s subject table.

The triggering event is defined to be one of INSERT, UPDATE, DELETE, SELECT operations (SQL statements) on the trigger’s subject table.

Each trigger is associated with one or two transition tables

one transition table that consists of the rows inserted, deleted, or selected by the event’s trigering action, in the case of INSERT, DELETE, SELECT events
two transition tables for UPDATE events, one for the affected rows before the update and one for after the update.

The triggered action is specified to take place

either immediately before or immediately after the triggering event
once in the case of a statement-level trigger, or
for each row in the triger’s transition table, in the case of a row-level trigger.

The trigered action is specified in the trigger’s body by a SQL procedure statement. Special variables are available in trigger’s body:

a row variable ranging over the rows of each transition table, for row-level triggers
a table variable for each transition table, for statement-level triggers

To create a trigger, we use

CREATE TRIGGER <trigger_name>
    {BEFORE|AFTER } {INSERT|UPDATE|DELETE}
    [OF <column_name>] ON <table_name> FOR EACH ROW
    <trigger_body>


27.1. Example trigger#

%%isql
-- # set up some tables to test demonstrate triggers

DROP TABLE IF EXISTS _takes;
DROP TABLE IF EXISTS _student;
CREATE TABLE _student AS SELECT * FROM student;
CREATE TABLE _takes AS SELECT * FROM takes;

13 rows affected.

22 rows affected.

Done.

%%isql --dialect sqlite
-- # Create trigger to maintain the total credits earned
-- # whenever students receive passing grades

DROP TRIGGER IF EXISTS credits_earned;

CREATE TRIGGER credits_earned
    AFTER UPDATE OF grade ON _takes
FOR EACH ROW
WHEN  new.grade != 'F' AND new.grade IS NOT NULL AND
      (old.grade = 'F' OR old.grade IS NULL)
BEGIN
  UPDATE _student
     SET tot_cred = tot_cred + (SELECT credits FROM course
                                WHERE course.course_id=new.course_id)
     WHERE _student.id = new.id;
END;

current connection dialect 'mysql' differs from target dialect 'sqlite'. Ignoring sql.

Done.

%%isql --dialect mysql
-- # Create trigger to maintain the total credits earned
-- # whenever students receive passing grades

DROP TRIGGER IF EXISTS credits_earned;

-- # May need to redefine the statement delimiter ; to another character depending on the client used

CREATE TRIGGER credits_earned
    AFTER UPDATE ON _takes
FOR EACH ROW
BEGIN
  -- DECLARE total_credits int;
  -- SET @total_credits = 0;
  -- SELECT sum(credits) INTO @total_credits FROM _takes natural inner join course
  --   WHERE id=NEW.id AND grade IS NOT NUll AND grade != 'F';
  IF (NEW.grade IS NOT NULL AND NEW.grade <> 'F') AND (OLD.grade = 'F' OR OLD.grade IS NULL) THEN
     SELECT credits INTO @credits FROM course WHERE course.course_id = NEW.course_id;
     UPDATE _student
        SET tot_cred = tot_cred + @credits WHERE _student.id = NEW.id;
  END IF;
END

Done.

Let’s test the trigger by updating the grade of a student

# Find students with missing grades on courses taken

%isql SELECT * FROM _student NATURAL INNER JOIN _takes WHERE grade is NULL;

1 rows affected.

Done.

	ID	name	dept_name	tot_cred	course_id	sec_id	semester	year	grade
0	98988	Tanaka	Biology	120	BIO-301	1	Summer	2010	None

# Focus on the takes record with the following attribute values (should not already exist)
sid, cid, sec_id, semester, year,  ngrade = '00128', 'CS-190', '2', 'Spring', '2009', 'B'

# insert that record
%isql insert into _takes values (:sid, :cid, :sec_id, :semester, :year, NULL);

1 rows affected.

Done.

# cause the trigger to fire and observe the outcome of its actions
target = %isql SELECT * FROM _takes WHERE id = :sid AND course_id = :cid;

result_b = %isql SELECT * FROM _student NATURAL INNER JOIN _takes NATURAL INNER JOIN course WHERE id = :sid;

%isql UPDATE _takes SET grade = :ngrade WHERE id = :sid AND course_id = :cid;

result_a = %isql SELECT * FROM _student NATURAL INNER JOIN _takes NATURAL INNER JOIN course WHERE id = :sid;

print('Result before update\n')
display(pd.DataFrame(result_b))
print('Result after  update\n')
display(pd.DataFrame(result_a))

1 rows affected.

Done.

3 rows affected.

Done.

1 rows affected.

Done.

3 rows affected.

Done.

Result before update

	dept_name	course_id	ID	name	tot_cred	sec_id	semester	year	grade	title	credits
0	Comp. Sci.	CS-190	00128	Zhang	102	2	Spring	2009	None	Game Design	4
1	Comp. Sci.	CS-347	00128	Zhang	102	1	Fall	2009	A-	Database System Concepts	3
2	Comp. Sci.	CS-101	00128	Zhang	102	1	Fall	2009	A	Intro. to Computer Science	4

Result after  update

	dept_name	course_id	ID	name	tot_cred	sec_id	semester	year	grade	title	credits
0	Comp. Sci.	CS-190	00128	Zhang	106	2	Spring	2009	B	Game Design	4
1	Comp. Sci.	CS-347	00128	Zhang	106	1	Fall	2009	A-	Database System Concepts	3
2	Comp. Sci.	CS-101	00128	Zhang	106	1	Fall	2009	A	Intro. to Computer Science	4

Can you tell whether or not the trigger fired and its actions executed?

# clean up

%isql DROP TRIGGER IF EXISTS credits_earned;
%isql DROP TABLE IF EXISTS _takes;
%isql DROP TABLE IF EXISTS _student;

Done.

28. Procedures and functions#

Database servers allow us to define stored procedures and functions using a procedural extension of SQL (e.g. SQL:2003). Stored procedures and functions facilitate S/W code modularity and reuse, providing us all its known S/W engineering benefits.

Stored functions:

can be used in expressions within SQL stamements
usually return scalar values
the server imposes various restrictions on the statements that can be used in the function’s body
some servers allow stored functions to return tuples and relations

Stored procedures:

have parameters that are indicated to be input only, output only, or both input and output
output parameters are used for returning computed values to their caller
have a different calling convention
can not be used in expressions of SQL statements

To create a stored function or procedure, use

CREATE PROCEDURE <proc_name> (<proc_parameters>)
    <characteristic>
    <body>

CREATE FUNCTION <func_name> (<func_parameters>)
    RETURNS <type>
    <characteristic>
    <body>

<proc_parameter> :: {IN|OUT|INOUT} <name> <type>
<func_parameter> :: <name> <type>

<characteristic> :: [ LANGUAGE SQL
                      | [NOT] DETERMINISTIC
                      | { CONTAINS SQL | NO SQL | READS SQL DATA | MODIFIES SQL DATA }
                    ]

<type> :: <domain_type>

The body of stored procedures and functions contains statements from a procedural SQL extension that is often dependent on the database server.

28.1. Example stored function#

%%isql --dialect mysql
-- # Create a function that returns the number of instructors of a given department

DROP FUNCTION IF EXISTS dept_count;

CREATE FUNCTION dept_count(dept_name VARCHAR(20))
  RETURNS INTEGER
  CONTAINS SQL READS SQL DATA
BEGIN
  DECLARE d_count INTEGER; -- local variable within the body of the stored function/procedure
  SELECT COUNT(*) INTO d_count
  FROM instructor
  WHERE instructor.dept_name=dept_name;
  RETURN d_count;
END;

Done.

%%isql --dialect mysql
-- use the stored-function in a SQL statement

SELECT dept_name, dept_count(dept_name)
FROM department;

7 rows affected.

Done.

	dept_name	dept_count(dept_name)
0	Biology	1
1	Comp. Sci.	3
2	Elec. Eng.	1
3	Finance	2
4	History	2
5	Music	1
6	Physics	2

%%isql --dialect mysql
-- # cleanup

DROP FUNCTION IF EXISTS dept_count;

Done.

28.2. Example stored procedure#

%%isql --dialect mysql
-- # A stored procedure to find the number of instructors of a given department

DROP PROCEDURE IF EXISTS dpc;

CREATE PROCEDURE dpc(IN dept_name VARCHAR(20), OUT d_count INTEGER, OUT sal_sum FLOAT)
CONTAINS SQL READS SQL DATA
BEGIN
  SELECT COUNT(*), SUM(salary) INTO d_count, sal_sum
  FROM instructor
  WHERE instructor.dept_name= dept_name;
END;

Done.

rs = None

%%isql --dialect mysql --return-result rs
-- # call the stored procedure and return the values of its output parameters

-- @name indicate a user variable 'name' that is local to the script

SET @no_instructors = NULL;
CALL dpc('Physics', @no_instructors, @total_salaries);
SELECT @no_instructors, @total_salaries;

1 rows affected.

Done.

# manipulate the result
if isinstance(rs, pd.DataFrame):
    print(f'output parameters of procedure call have values {rs.loc[0].to_dict()}')

output parameters of procedure call have values {'@no_instructors': 2.0, '@total_salaries': 182000.0}

%%isql --dialect mysql
-- # cleanup

DROP PROCEDURE IF EXISTS dpc;

Done.

28.3. User-defined functions and procedures#

Some database servers

allow SQL user-defined (UDF) routines (functions or procedures) whose body is written in another programming language, most often C/C++
require the user to provide, for each UDF, a C/C++ source code library implementing a server-dependent API
require the user to compile the source code library into a dynamic loadable shared object library
dynamically load the shared object library into the running server on demand
allow users to use UDFs as ‘ordinary’ stored procedures/functions in SQL statements
UDFs can be scalar, aggregate, or window functions

%%isql --dialect ansi

CREATE FUNCTION logsumexp RETURNS REAL
  SONAME 'udf_logsumexp.so';

-- # Define user-defined functions and procedures whose body is in external libraries

CREATE FUNCTION dept_count(dept_name VARCHAR(20))
  RETURNS INTEGER
LANGUAGE C
EXTERNAL NAME '/usr/avi/bin/dept_count.so';

CREATE PROCEDURE dpc(IN dept_name VARCHAR(20),
OUT d_count INTEGER)
LANGUAGE C
EXTERNAL NAME '/usr/avi/bin/dept_count_proc.so';

current connection dialect 'mysql' differs from target dialect 'ansi'. Ignoring sql.

Done.

28.4. Example Python UDFs in Sqlite#

Sqlite (as of release 3.30) does not support stored procedures of functions.

However, Sqlite provides for UDFs defined in application code or as dynamic loadable extensions.

# for user-defined functions in sqlite see
# https://www.sqlite.org/appfunc.html
# https://docs.python.org/2/library/sqlite3.html#sqlite3.Connection.create_function

import sqlite3

def my_udf_sample(t):
    # source code of UDF
    return f'result of calling this UDF with arg="{t}" is "{t.upper()}"'

con = sqlite3.connect(':memory:')

con.create_function("my_udf", 1, my_udf_sample)

cur = con.cursor()
cur.execute("select my_udf(?)", ("foo",))
#cur.execute("select my_udf('databases')")
print(cur.fetchone()[0])

con.close()

result of calling this UDF with arg="foo" is "FOO"

# An example of a UDF aggregate function in Sqlite: computing the sample standard deviation
import sqlite3
import math

# define the body/implementation for the UDF
class MyStdev:
    def __init__(self):
        self.count = 0
        self.sum_x1 = 0
        self.sum_x2 = 0

    def step(self, value):
        self.count += 1
        self.sum_x1 += value
        self.sum_x2 += value * value

    def finalize(self):
        t= None
        if self.count > 1:
            avg = self.sum_x1/self.count
            t = self.sum_x2 - 2 * avg * self.sum_x1 + self.count * avg * avg
            t = t/(self.count-1)
            t = math.sqrt(t)
        elif self.count == 1:
            t = 0
        return t

con = sqlite3.connect(":memory:")
# con = sqlite3.connect("test2.sqlite")

# create an aggregate UDF based on the body (class) above
con.create_aggregate("stdev", 1, MyStdev)

# use the UDF in SQL
cur = con.cursor()
cur.execute("create table test(i real, j int)")
cur.execute("insert into test(i,j) values (1, 0), (2, 0), (3, 1), (4, 0), (5, 0), (6, 1), (7, 1)")

cur.execute("select j, stdev(i) from test group by j")

rows = cur.fetchall()
fields = tuple(desc[0] for desc in cur.description)
print(fields)
for row in rows:
    print(row)

con.close()

('j', 'stdev(i)')
(0, 1.8257418583505538)
(1, 2.0816659994661335)

29. Authorization and Protection#

In multi-user database systems, appropriate authorization and protection mechanisms are essential for the security and protection of the database.

In order for clients to interact with the database server and act on data in the database, the client’s agent needs appropriate privileges. The server requests relevant credentials from the client authenticating the client’s agent.

There are many access privileges defined in a database system for accessing tables, columns, indexes, views, stored procedures and functions, users and roles, etc., such as

CREATE, ALTER, DROP, REFERENCES, INDEX,
SELECT, INSERT, UPDATE, DELETE,
CREATE VIEW, TRIGGER,
CREATE ROUTINE, EXECUTE ROUTINE,
CREATE ROLE, CREATE USER,
GRANT OPTION,
ALL

A role within the context of database protection

is a named collection of database privileges
is useful for organizing commonly needed privileges
can be created or dropped

%%isql --dialect mysql
-- #create and drop database protection roles

DROP ROLE IF EXISTS faculty, accountant, advisor;
CREATE ROLE faculty, accountant, advisor;

Done.

A (MySQL) database user account

enables a client at computing device with IP address hostname to authenticate itself to the database server using the client’s agent username and password
an authenticated client can start a database session with the privileges contained in the client agent’s default role(s)
can create and drop agents (user accounts) using

CREATE USER <username>@<hostname> [DEFAULT ROLE <roles>] IDENTIFIED BY [<password>|RANDOM PASSWORD];

%%isql --dialect mysql
# create and drop database user accounts

CREATE USER IF NOT EXISTS alex@'127.0.0.1' IDENTIFIED BY 'self' DEFAULT ROLE faculty, advisor;
CREATE USER IF NOT EXISTS chris@localhost IDENTIFIED BY 'self' DEFAULT ROLE accountant;
CREATE USER IF NOT EXISTS pat IDENTIFIED BY 'self' DEFAULT ROLE faculty;

Done.

Use the SQL statement

GRANT <privileges> ON <objects> TO <agents or roles> [WITH GRANT OPTION];

to confer privileges and roles to agents or other roles

%%isql --dialect mysql
-- # grant some privilege and roles to agents and roles

GRANT ALL ON university.* TO alex@'127.0.0.1';
GRANT faculty, advisor TO alex@'127.0.0.1', chris@localhost;
GRANT SELECT ON department TO pat WITH GRANT OPTION;

Done.

Use the SQL statement

REVOKE <privileges> FROM <agents or roles> [RESTRICT];

to revoke privileges and roles from agents or roles, e.g.

%%isql --dialect mysql
-- # revoke some privileges from agents and roles

REVOKE ALL ON university.* FROM alex@'127.0.0.1';

REVOKE INSERT ON *.* FROM chris@localhost;
-- REVOKE INSERT ON *.* FROM chris@'google.com';
REVOKE advisor FROM faculty;
FLUSH PRIVILEGES;

Done.

%%isql --dialect mysql
-- # to enact the grant/revoke privileges for the server
FLUSH PRIVILEGES;

SELECT current_role();
SHOW DATABASES;
SELECT * FROM mysql.user;

1 rows affected.

7 rows affected.

10 rows affected.

Done.

	Host	User	Select_priv	Insert_priv	Update_priv	Delete_priv	Create_priv	Drop_priv	Reload_priv	Shutdown_priv	Process_priv	File_priv	Grant_priv	References_priv	Index_priv	Alter_priv	Show_db_priv	Super_priv	Create_tmp_table_priv	Lock_tables_priv	Execute_priv	Repl_slave_priv	Repl_client_priv	Create_view_priv	Show_view_priv	Create_routine_priv	Alter_routine_priv	Create_user_priv	Event_priv	Trigger_priv	Create_tablespace_priv	ssl_cipher	x509_issuer	x509_subject	plugin	authentication_string	password_expired	password_last_changed	password_lifetime	account_locked	Create_role_priv	Drop_role_priv	Password_reuse_history	Password_reuse_time	Password_require_current	User_attributes
0	%	accountant	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	mysql_native_password		Y	2025-10-03 09:25:56	None	Y	N	N	None	None	None	None
1	%	advisor	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	mysql_native_password		Y	2025-10-03 09:25:56	None	Y	N	N	None	None	None	None
2	%	faculty	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	mysql_native_password		Y	2025-10-03 09:25:56	None	Y	N	N	None	None	None	None
3	%	pat	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	mysql_native_password	*E2F19C1BE5142B0EED5F5098EAA455FA4923B8E2	N	2025-10-03 09:25:56	None	N	N	N	None	None	None	None
4	127.0.0.1	alex	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	mysql_native_password	*E2F19C1BE5142B0EED5F5098EAA455FA4923B8E2	N	2025-10-03 09:25:56	None	N	N	N	None	None	None	None
5	localhost	chris	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	mysql_native_password	*E2F19C1BE5142B0EED5F5098EAA455FA4923B8E2	N	2025-10-03 09:25:56	None	N	N	N	None	None	None	None
6	localhost	mysql.infoschema	Y	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	caching_sha2_password	$A$005$THISISACOMBINATIONOFINVALIDSALTANDPASSWORDTHATMUSTNEVERBRBEUSED	N	2022-08-27 12:53:18	None	Y	N	N	None	None	None	None
7	localhost	mysql.session	N	N	N	N	N	N	N	Y	N	N	N	N	N	N	N	Y	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	caching_sha2_password	$A$005$THISISACOMBINATIONOFINVALIDSALTANDPASSWORDTHATMUSTNEVERBRBEUSED	N	2022-08-27 12:53:18	None	Y	N	N	None	None	None	None
8	localhost	mysql.sys	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	b''	b''	b''	caching_sha2_password	$A$005$THISISACOMBINATIONOFINVALIDSALTANDPASSWORDTHATMUSTNEVERBRBEUSED	N	2022-08-27 12:53:18	None	Y	N	N	None	None	None	None
9	localhost	root	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	b''	b''	b''	mysql_native_password	*94BDCEBE19083CE2A1F959FD02F964C7AF4CFC29	N	2022-08-27 12:53:21	None	N	Y	Y	None	None	None	None

To modify the client’s effective privileges within the current session specifying which of its agent’s granted roles are active, eg

%%isql --dialect mysql
-- # change the privileges that are active in the current database session

SET ROLE DEFAULT;
-- SET ROLE faculty;
SET ROLE ALL;
SET ROLE ALL EXCEPT accountant;
SELECT current_role();
SHOW DATABASES;

1 rows affected.

7 rows affected.

Done.

%isql --dialect mysql select current_role();

1 rows affected.

Done.

	current_role()
0	NONE

Note: SQLite is a single-file database system and relies on the OS’s filesystem for authentication and protection. SQLite does not support user accounts, privileges, or roles.

%%isql --dialect mysql
-- # Cleanup the user accounts and roles created above

DROP ROLE IF EXISTS faculty, advisor, accountant;
DROP USER IF EXISTS alex@'127.0.0.1', chris@localhost, pat;

Done.

30. Appendix#

This notebook makes use of certain support methods and/or SQL Views whose implementation is not provided in public as yet. I expect to release them in the near future to the public.

Introduction

Contents

1. Introduction#

2. Initialization & Setup#

2.1. Setup prerequisite S/W packages#

2.2. imports#

2.3. Support functions#

3. Connect to a database#

3.1. establish connections#

3.2. set current connection#

4. SQL in 1 minute#

5. Concepts and terms I#

5.1. Users, agents, clients and servers#

5.2. Tables#

5.3. Integrity constraints#

5.3.1. Checking of constraints#

6. Creating, altering, and dropping tables#

6.1. Dropping a table#

6.2. Domain types#

6.3. Creating a table#

6.4. Foreign key reference constraints#

6.5. Example: creating a table with foreign key reference constraints#

6.6. Modifying the structure of an existing table#

7. Concepts and terms II#

7.1. Cursor#

7.2. Query evaluation#

8. Structure of common SQL query statements#

9. Querying a single table#

9.1. Projecting attributes to the result table#

9.2. Supressing duplicate tuples from the result table#

9.3. The * operator#

9.4. Sorting the result table#

9.5. Deriving additional attributes for the result table#

9.6. Renaming attributes of the result table#

9.7. Filtering input tuples I#

9.8. Limiting the range of the result table at the client#

9.9. Aggregating the result table#

10. Working with NULL in SQL queries#

11. Querying multiple input tables I: Cartesian Product#

12. Quering multiple input tables II: Joins#

12.1. Join types and conditions#

12.2. Join syntax variants#

12.2.1. Foreign key references and joins#

13. Compound SQL statements: set operations on tables#

14. Nested subqueries#

14.1. Uncorrelated vs correlated nested subqueries#

14.2. Filtering outer tuples using boolean predicates on sub-query result tables#

14.2.1. Filtering based on value-operator-table predicates#

14.2.2. Filtering using table-wise predicates#

14.3. Scalar sub-queries#

15. Derived tables#

15.1. Views#

16. Transient tables and the WITH clause#

16.1. Common Table Expressions#

17. Temporary tables#

18. Modifying the tuples of a table#

18.1. Inserting tuples#

18.1.1. Transition tables#

18.2. Deleting tuples#

18.3. Updating tuples#

19. Indexing to speedup searching tables#

19.1. Cost-benefit of an index affects its usefulness#

20. Fulltext queries#

21. Virtual tables#

22. Catalogs and schemas#

23. Recursive tables in SQL#

24. OLAP queries#

24.1. Rollup#

24.2. Pivot tables#

24.2.1. Cross-tabulation (pivot tables) using pandas DataFrames#

24.2.1.1. example: single attributes#

24.2.1.2. example: multiple attributes#

24.2.1.3. example: with a table stored in a CSV file#

24.3. Data cubes#

25. Window Aggregations#

25.1. Windowing concepts#

25.2. Tables and views used in the windowing examples#

25.3. Ranking#

25.4. Window frames for rolling aggregations#

25.5. Notes on window functions#

9.3. The `*` operator#
