CMSC--202 Computer Science II for Majors
Fall 1997 5 November 1997 Introduction to Sorting

This handout documents some of the material covered in the sorting lectures.

Introductory Ideas

• There are basically two types of sorting algorithms:
  1. comparison-based sorting, and
  2. address-calculation-based sorting
• Radix sorting is an example of an address-calculation-based method. We do not cover these methods.
• Examples of comparison-based algorithms are:
  1. algorithms
     • bubblesort
     • insertion sort
     • selection sort
  2. algorithms
     • merge sort
     • quick sort (average behavior)
     • heap sort

• In the worst case, quicksort is an algorithm.

• The minimum number of comparisons required, on average, to sort n items, using a comparison-based sorting method, is

Comparison Trees

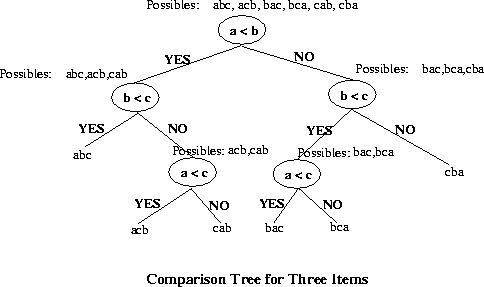

Definition: A comparison tree (also known as a decision tree) is a binary tree in which, at each internal node, a comparison is made between two keys and in which each leaf represents a sorted arrangement of keys. The number of leaves in a comparison tree must be , where n is the number of items to be sorted. This is the number of permutations of the n items. Every permutation must be represented in the comparison tree, and every leaf represents one of the permutations.

The ``worst-case'' number of comparisons in the tree is the length of the longest path. For the three item tree above, the longest path is of length 3. This can be expressed as the ceiling of The ``average'' number of comparisons is just the sum of the path lengths divided by the number of leaves or

       (2 + 3 + 3 + 3 + 3 + 2) / 6   = 2.67

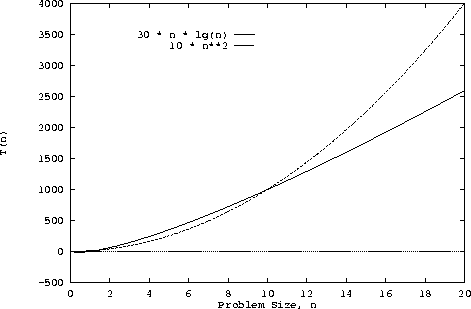

It can be shown that as n increases, the average number of comparisons grows proportionately to . Thus, the very best average performance of any sorting algorithm based on comparisons is Question: Since mergesort is an algorithm and selection sort is an algorithm, why would one ever choose the ``slower'' selection sort over the ``faster'' mergesort? Answer: selection sort will probably be faster than mergesort when n is not large. It's a simpler algorithm so will likely have a lower constant of proportionality than mergesort. The following figure shows an example.

Question: Since mergesort and quicksort are each algorithms, why choose one over the other? Answer: quicksort runs faster on average, even though both have the same growth behavior with increasing n. Question: Well, then, why ever use mergesort? Answer: The average performance of quicksort is , but there are worst cases which produce performance. Mergesort performance is the same for average and worst cases. If you don't want to take the chance that your data may give the worst case for quicksort, you might want to choose mergesort (or some other algorithm).
