CMSC--202 , Section Computer Science II for Majors
Fall 1997 16 November 1997 Handout -- Binary Trees

The Binary Tree ADT

We have already examined the mathematical notion of trees in general and binary trees in particular. We now interpret those mathematical ideas to a form useful for computation by developing a binary tree ADT. A binary tree is a homogeneous collection of hierarchically organized data. Each datum contains a value, a left child, and a right child (both of which are data). The value stored at a datum is of type tree_item_type and a tree is of type tree_type. There is a constant the_empty_tree that designates a binary tree containing no data. The following non-destructive operations are defined:

• tree_type tree_cons(tree_item_type E, tree_type L, tree_type R) constructs and returns a new tree with E as its root and L and R as its left and right children, respectively.

• tree_item_type tree_data(tree_type T) returns the value at the root of T. It is an error to invoke tree_data on an empty tree.

• tree_type left_child(tree_type T) returns the left subtree of T. It is an error to invoke left_child on an empty tree.

• tree_type right_child(tree_type T) returns the right subtree of T. It is an error to invoke right_child on an empty tree.

• BOOL empty_tree(tree_type T) returns TRUE if T is empty, FALSE otherwise.

The bintrees.h interface file for the binary tree operations is in the directory
anastasi/Public/202/Includes . The implementation of the operations is in the lib202.a archive in the directory anastasi/Public/202/Libraries .

Implementation of Binary Trees

This section presents one implementation of the binary tree ADT presented above. This implementation follows closely our implementation of linked lists. We assume that tree_item_type has been defined to be the type of object we want to store at each node of the tree. The underlying data structures are defined as follows:

typedef struct tree_tag *tree_type;

typedef struct tree_tag {
  tree_item_type data;
  tree_type left;
  tree_type right;
} tree_struct_type;

Because a tree is a pointer in this implementation, it is natural to use NULL to represent the empty tree:

#define the_empty_tree NULL

The code for the five basic functions is straightforward; comparison with the list routines presented in class reveals an almost token--for--token similarity:

tree_type
tree_cons(tree_item_type value, tree_type left, tree_type right)
{
  tree_type result;
  result = (tree_type) malloc(sizeof(tree_struct_type));
  assert(result != NULL);
  result->data = value;
  result->left = left;
  result->right = right;
  return result;
}

tree_item_type
tree_data(tree_type tree)
{
  assert(empty_tree(tree) == FALSE);
  return tree->data;
}

tree_type
left_child(tree_type tree)
{
  assert(empty_tree(tree) == FALSE);
  return tree->left;
}

tree_type
right_child(tree_type tree)
{
  assert(empty_tree(tree) == FALSE);
  return tree->right;
}

BOOL
empty_tree(tree_type tree)
{
  return  (tree == the_empty_tree) ? TRUE : FALSE;
}

Tree Traversal

A traversal routine is one that visits every node of a tree, performing a given operation on each node when it is visited. Three orderings of the nodes during traversal are in common use:

• pre--order traversal: Each node is visited before any of its descendants is visited.

• in--order traversal: A node is visited after all of its left descendants have been visited, but before any of its right descendants is visited.

• post--order traversal: Each node is visited after all of its descendants have been visited.

The following code will perform any one of these traversal methods:

typedef enum {preorder, inorder, postorder} traversal_type;

void
traversal(tree_type tree, traversal_type method, void (*operation)(tree_type))
{
   if (empty_tree(tree) == FALSE)
    {
     if (method == preorder)
        operation(tree);
     traversal(left_child(tree), method, operation);

     if (method == inorder)
        operation(tree);
     traversal(right_child(tree), method, operation);

     if (method == postorder)
        operation(tree);
    }
}

As an example of the use of the traversal routine, the following code will print the contents of a tree of integers:

void
print_int_tree_data(tree_type tree)
{
  printf("%d ", tree_data(tree));
}

void
print_int_tree(tree_type tree, traversal_type type)
{
  traversal(tree, type, print_int_tree_data);
  putchar('\n');
}

Tree Search

A search is like a traversal, except that when a desired node in the tree is encountered, the search is terminated. A search returns the desired node, or the_empty_tree if no appropriate node is found.

Two orderings of the nodes in a search are in common use:

• depth--first search: Nodes are searched in the same order that they are visited in a pre--order traversal.

• breadth--first search: All the nodes at a given level of the tree are searched before any node at a deeper level is searched.

Each of the search routines in the following subsections takes two arguments: a tree to search, and a predicate that determines whether an acceptable node has been found.

Depth--First Search

Here is an implementation of depth--first search. It uses recursion to search downward in the tree:

tree_type
depth_first_search(tree_type tree, BOOL (*predicate)(tree_type))
{
  tree_type result;
  if (empty_tree(tree) == TRUE)
    return the_empty_tree;
  if (predicate(tree) == TRUE)
    return tree;

  result = depth_first_search(left_child(tree), predicate);
  if (empty_tree(result) == FALSE)
    return result;
  else
    return depth_first_search(right_child(tree), predicate);
}

Here is an implementation of depth--first search that uses an explicit stack. The stack is used to keep track of which nodes are yet to be examined:

tree_type
dfs_stack(tree_type tree, BOOL (*predicate)(tree_type))
{
  stack_type stack = create_stack();
  tree_type guess;

  push(tree, stack);
  while (empty_stack(stack) == FALSE)
    {
      guess = pop(stack);
      if (empty_tree(guess) == TRUE)
        continue;
      if (predicate(guess) == TRUE)
        return guess;
      push(left_child(guess), stack);
      push(right_child(guess), stack);
    }
  return the_empty_tree;
}

Breadth--first Search

Here is an implementation of breadth--first search. Notice that a queue is used instead of a stack; otherwise, this routine is virtually identical to the second implementation of depth--first search:

tree_type
bfs_queue(tree_type tree, BOOL (*predicate)(tree_type))
{
  queue_type queue = create_queue();
  tree_type guess;

  enqueue(tree, queue);
  while (empty_(queue) == FALSE)
    {
      guess = dequeue(queue);
      if (empty_tree(guess) == TRUE)
        continue;
      if (predicate(guess) == TRUE)
        return guess;
      enqueue(left_child(guess), queue);
      enqueue(right_child(guess), queue);
    }
  return the_empty_tree;
}

Exercises

1. Write the expand_leaf function. Expand_leaf takes three arguments: a binary tree, and two values. It returns a new tree that is identical to the original tree, except that every node that was a leaf in the original tree now has both a left and a right child, whose values are equal to the second and third arguments to expand_leaf respectively. Expand_leaf must not modify the original tree in any way.

2. Write the height function. Height takes a binary tree as its argument, and returns the height of the tree. The height of a tree is the maximum level of any node in the tree. The level of a node in a tree is its distance from the root. Assume that the root of a tree has level 0, the children of the root have level 1, etc. Height should return -1 if given the empty tree as argument.

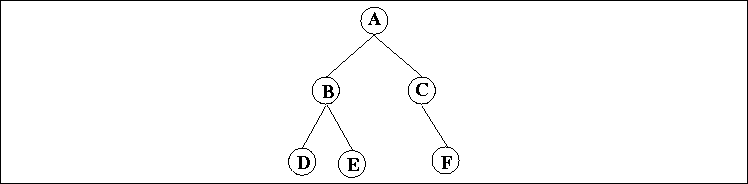

3. Write the delete_root function. Delete_root takes a binary tree as its argument, and returns a new tree that contains every value stored in the original tree except for the value stored at its root. The root of the new tree should be one of the children of the root of the original tree (the other child of the original tree must remain where it was); each child of the root of the new tree should be either a child or a grandchild of the root of the old tree (with nodes not promoted to fill a blank remaining where they were); and so on. For example, if delete_root were called on the tree:

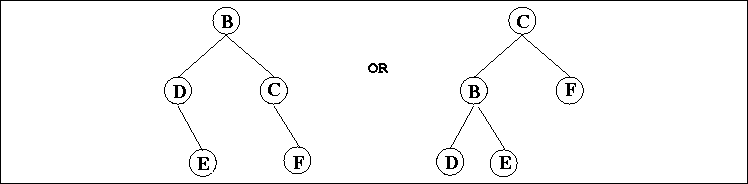

   it might return the tree: Note that other solutions are possible; your program may return any legal solution. If delete_root is called on the empty tree, or on a tree containing exactly one node, it should return the empty tree. Delete_root must not modify its argument in any way; it should produce a brand new tree.
