CMSC--202 , Section Computer Science II for Majors
Fall 1997 24 September 1997 Homework 3

Note that the usual ``midnight rule'' does not apply for this assignment. To be accepted, you must hand in your assignment before the end of the class meeting on the indicated date.

There is NO automatic extension. Homework not submitted by the end of the class meeting will not be accepted. Submittals are to be on paper, not electronic.

Assignment

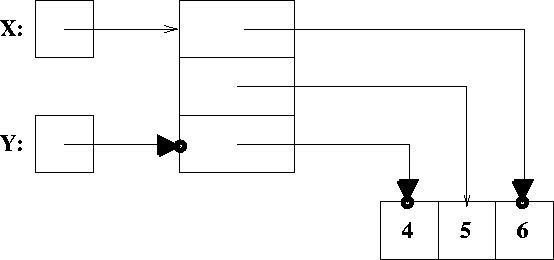

  1. Write the type definitions, variable declarations, and code that will create the following picture:

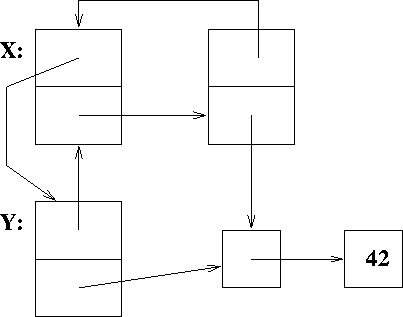

  2. Write the type definitions, variable declarations, and code that will create the following picture:

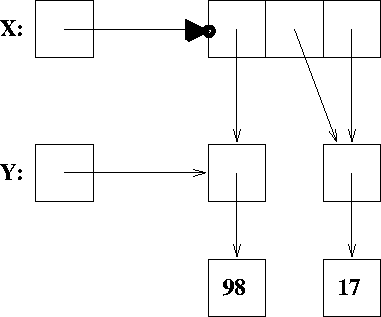

  3. Write the type definitions, variable declarations, and code that will create the following picture:

  4. Write the type definitions, variable declarations, and code that will create the following picture:

  5. Draw the results of the following code:

    typedef struct st_tag * str_ptr;
typedef struct st_tag
{
  str_ptr field1;
  str_ptr field2;
} struct_type;

main()
{
  str_ptr problem;

  problem = malloc(sizeof(struct_type));
  problem->field1 = malloc(sizeof(struct_type));
  problem->field2 = malloc(sizeof(struct_type));
  problem->field1->field1 = problem->field1;
  problem->field1->field2 = problem->field2;
  problem->field2->field1 = problem->field1;
  problem->field2->field2 = problem->field2;
}

  6. Draw the results of the following code:

    typedef int *int_ptr;
typedef int_ptr *int_ptr_ptr;
typedef struct
  {
   int_ptr_ptr field1;
   int_ptr_ptr field2;
  } problem_struct;

main()
{
  problem_struct problem;

  problem.field1 =  malloc(sizeof(int_ptr));
  *problem.field1 =  malloc(sizeof(int));
  **problem.field1 = 73;
  problem.field2 =  malloc(sizeof(int_ptr));
  *problem.field2 = *problem.field1;
  **problem.field2 = 42;
}

  7. Draw the results of the following code:

    typedef int *int_ptr;
typedef int_ptr *int_ptr_ptr;
typedef struct
   {
    int_ptr_ptr field1;
    int_ptr_ptr field2;
   } problem_struct;

main()
{
  problem_struct problem;

  problem.field1 =  malloc(sizeof(int_ptr));
  *problem.field1 =  malloc(sizeof(int));
  **problem.field1 = 73;
  problem.field2 =  malloc(sizeof(int_ptr));
  *problem.field2 =  malloc(sizeof(int));
  **problem.field2 = 42;
}

  8. Draw the results of the following code:

    typedef int *iptr;
typedef struct strtag *stptr;
typedef struct strtag
  {
   iptr field1;
   stptr field2;
  } strtype;
typedef stptr arrtype[2];

main()
{
  arrtype x;

  x[0] =  malloc(sizeof(strtype));
  x[0]->field2 = x[0];
  x[1] =  malloc(sizeof(struct strtag));
  x[1]->field2 = x[0]->field2->field2;
  x[1]->field1 =  malloc(sizeof(int));
  x[1]->field2->field1 = x[1]->field1;
  *(*x[0]).field1 = 1776;
  x[1]->field2->field2->field2 = x[1];
  *x[0]->field2->field1 = 2001;
}
